Regular price$150.00 USD
/
Shipping calculated at checkout.

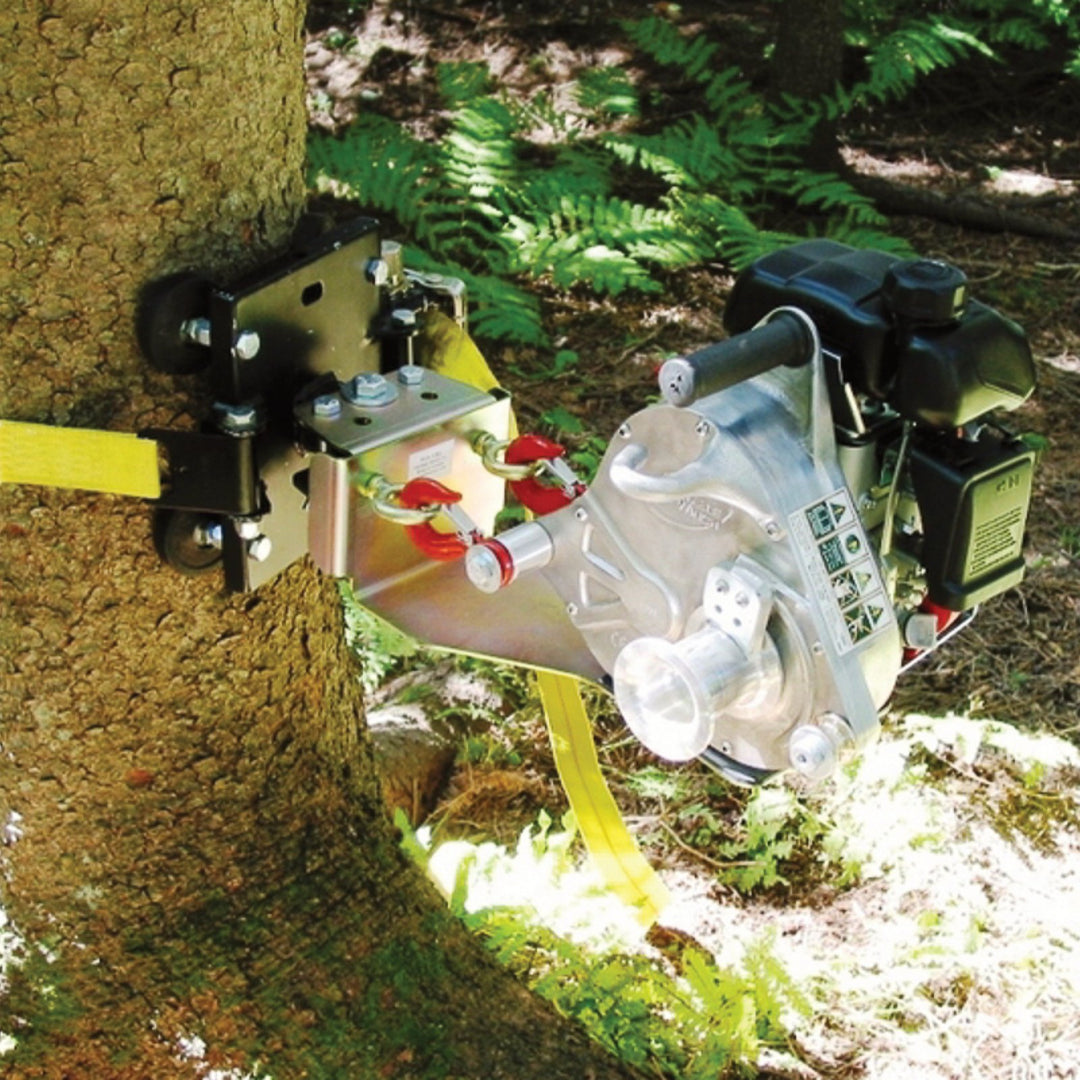

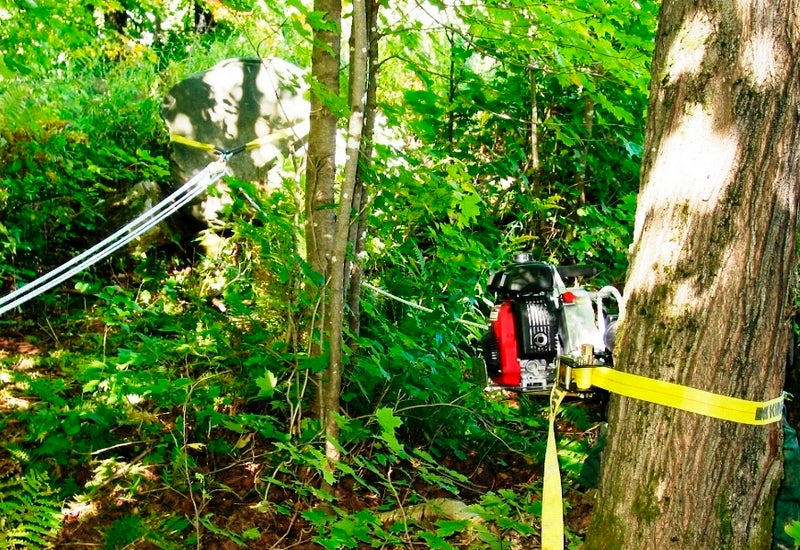

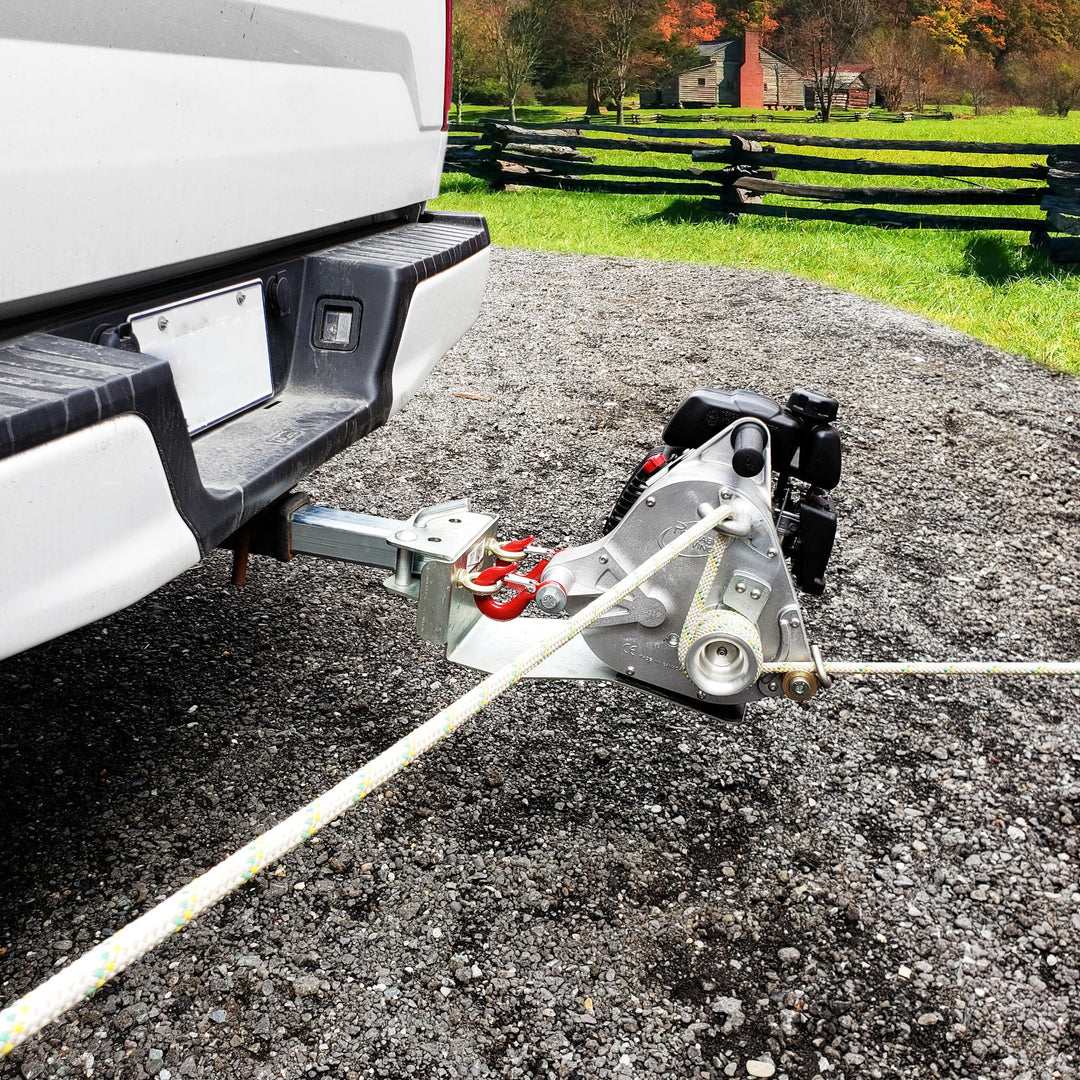

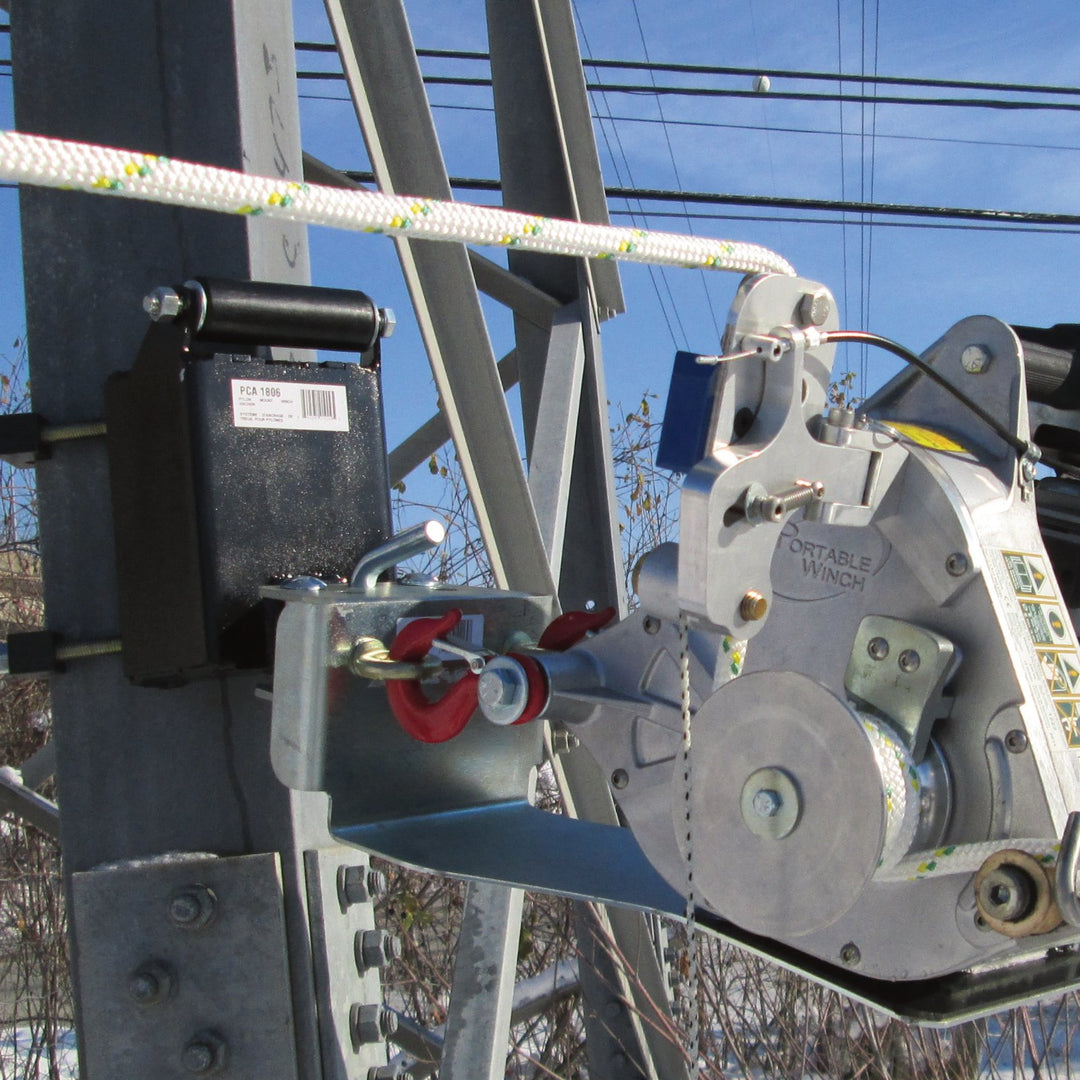

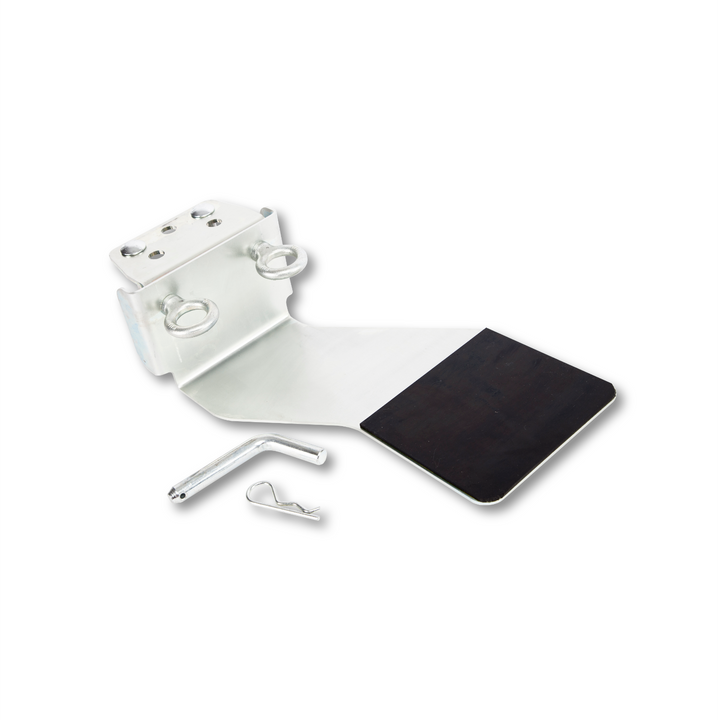

The winch support plate is designed to securely anchor the winch to a tree, pole, vehicle, or pylon when used in conjunction with one of our anchoring systems. It provides excellent stability for the winch and enables prolonged use from a fixed position. The plate is capable of swiveling 45 degrees on each side, ensuring a solid support that automatically aligns with the load. Additionally, it is equipped with rubber padding to absorb vibrations.

Note: This support plate cannot be used independently and must be combined with other accessories. The PCA-1268 allows for various accessory combinations based on the application and environment (see figures above).

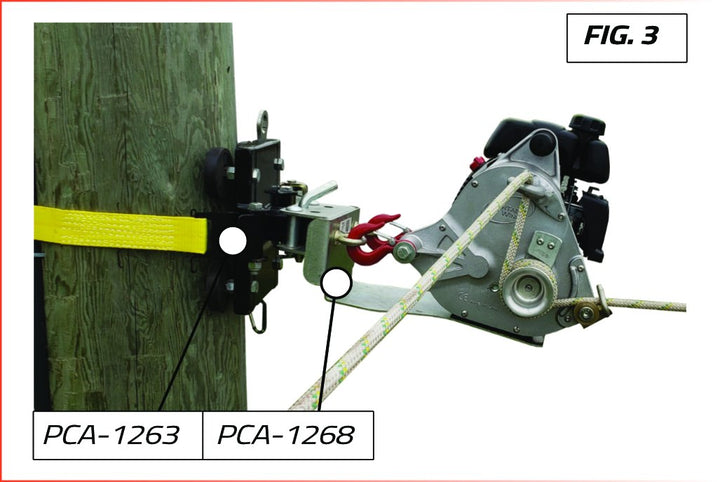

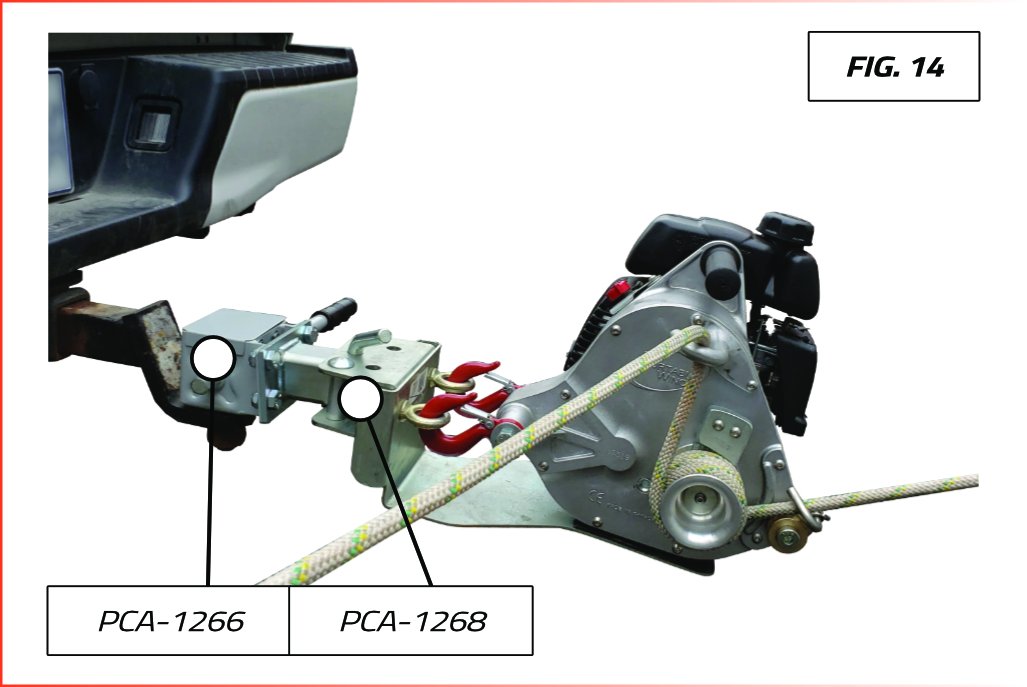

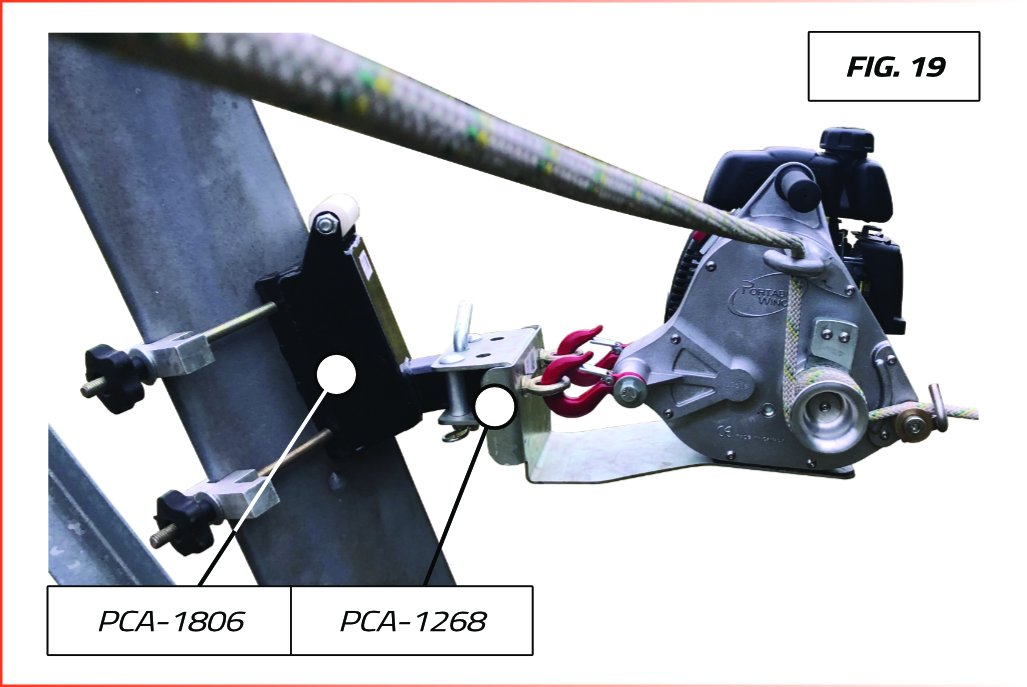

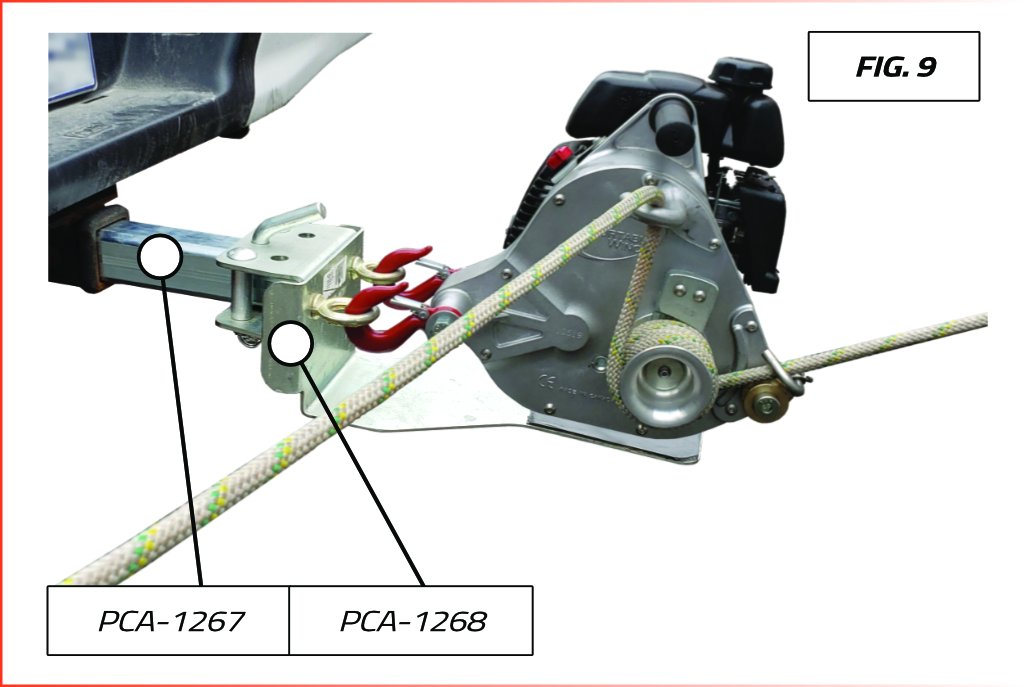

For example, when paired with specific accessories, it allows for horizontal pulling. In such cases, the winch faces the load directly, and the rope is aligned in a straight line towards the winch. (Refer to Fig. 3, 9, 14, 19)

Compatible with the following winch models: PCW3000-Li, PCW3000, PCW4000, PCW5000, and PCW5000-HS.

For more information, please refer to the “Additional Information” tab, where you can find an informative videos and the manual.

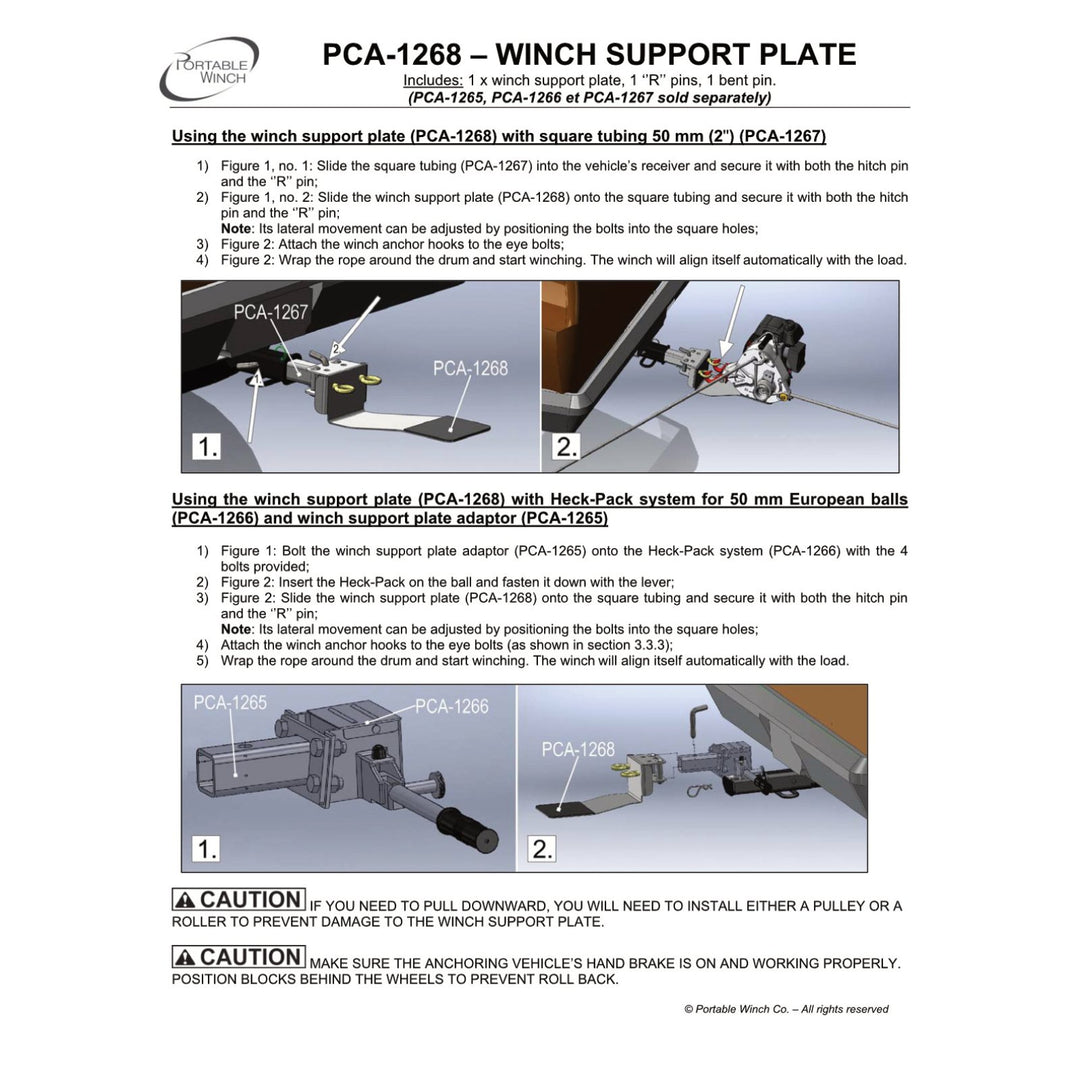

Find the manual here.

Material: Zinc plated steel
Weight: 9 lb
Dimensions: 17'' x 11'' x 6''

VIDEO CONTENT

Since the video above is 13-minute long, we thought we would put the markers below to allow you to move directly to your product(s) of interest. You will be able to advance the video at the time of your choice.

Customer Reviews

Based on 5 reviews
80%
(4)
0%
(0)
0%
(0)
20%
(1)
0%
(0)
J
J.B.
hitch mount

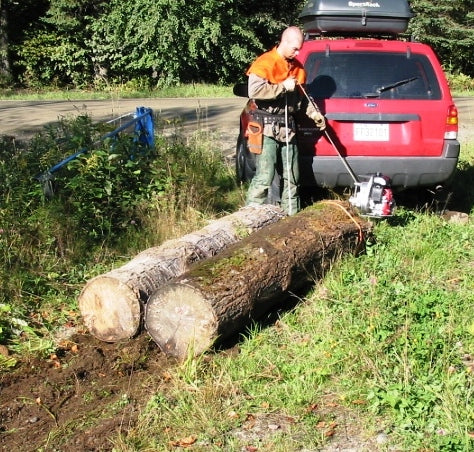

was able to pull logs so much easier with this ingenious product. just had to make sure i was pulling flat . after i had a problem . customer service was able to help out . very happy
