PCA-1269

Regular price$150.00 USD
/
Shipping calculated at checkout.

DESCRIPTION

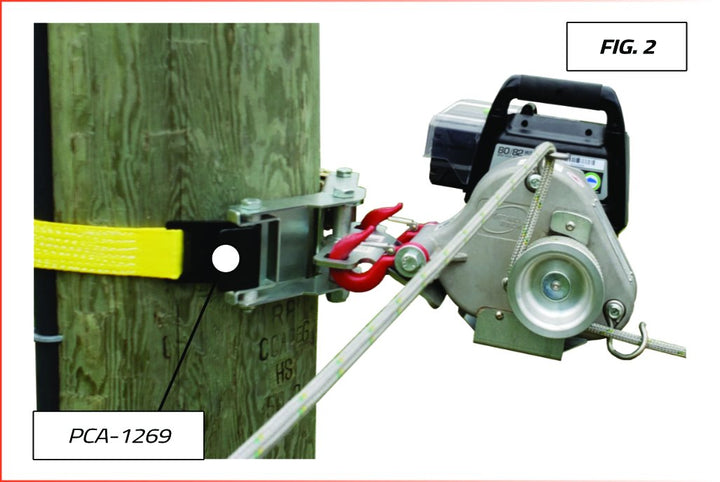

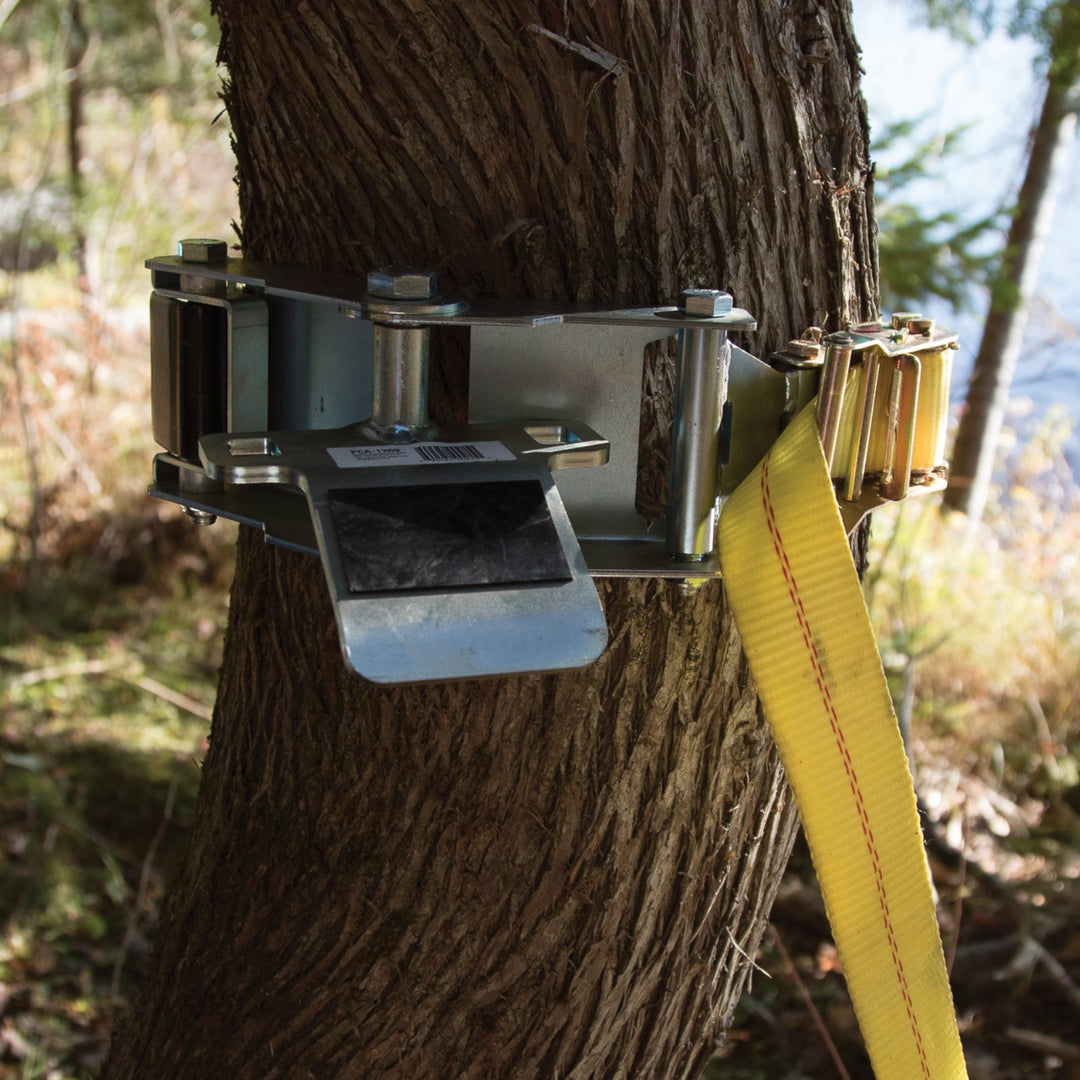

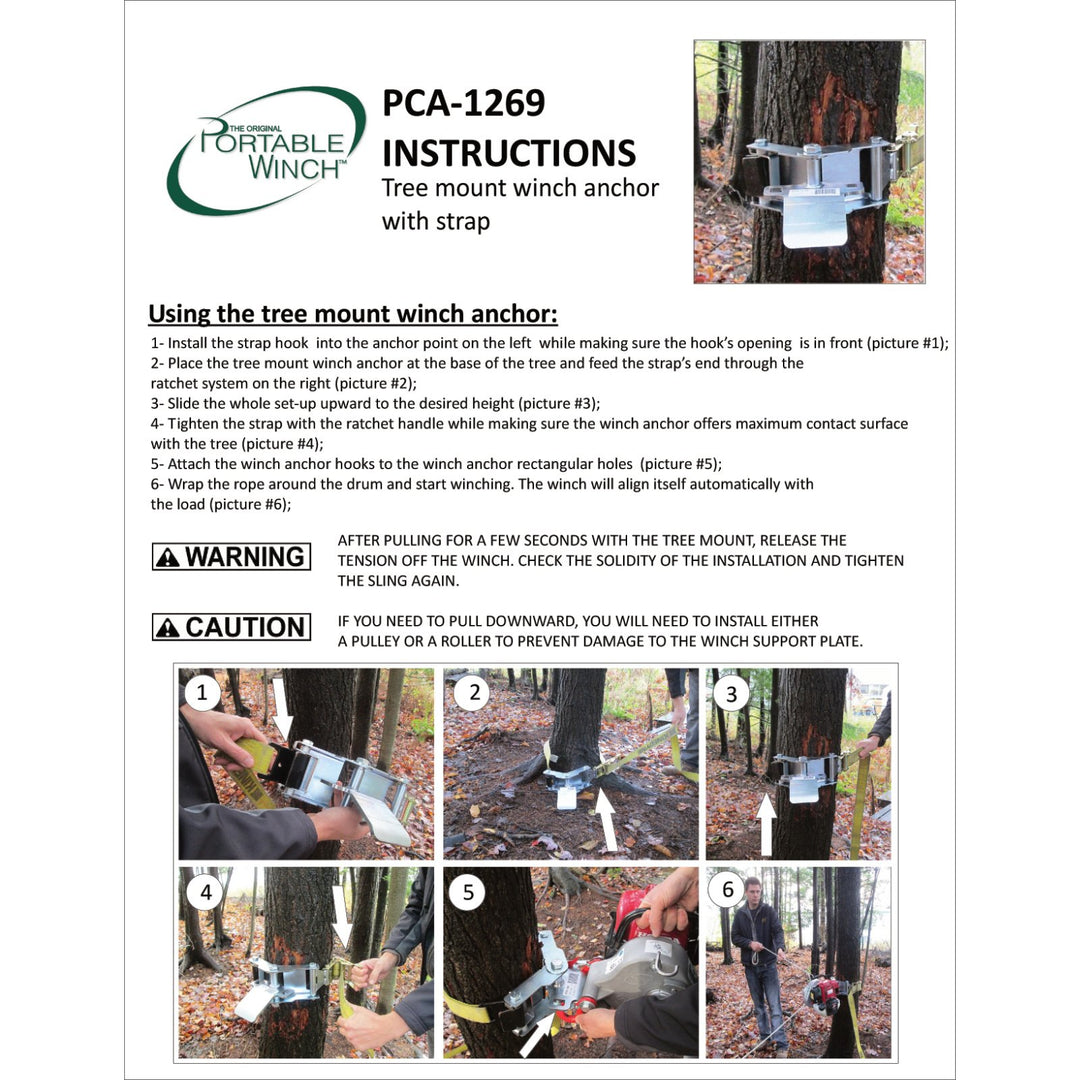

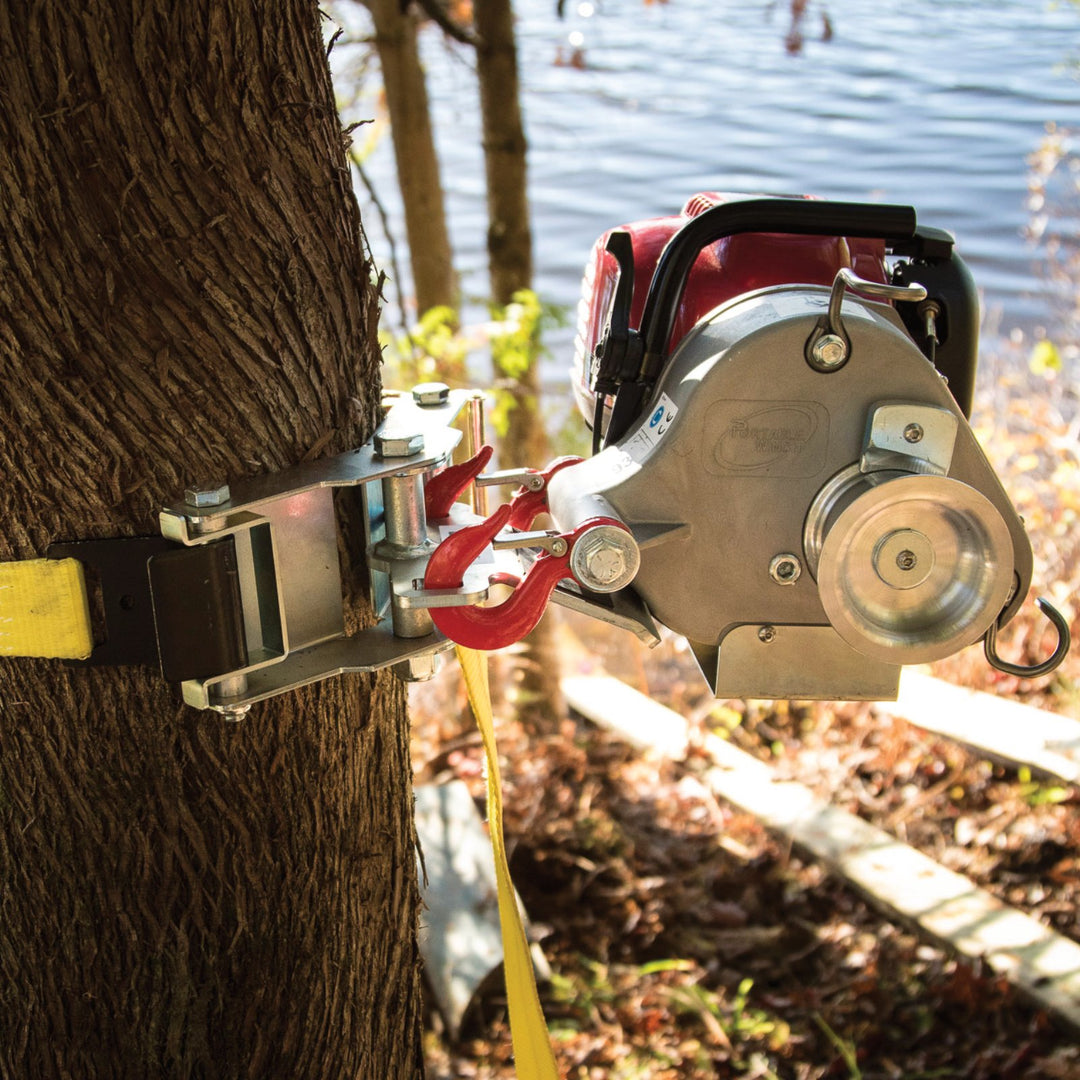

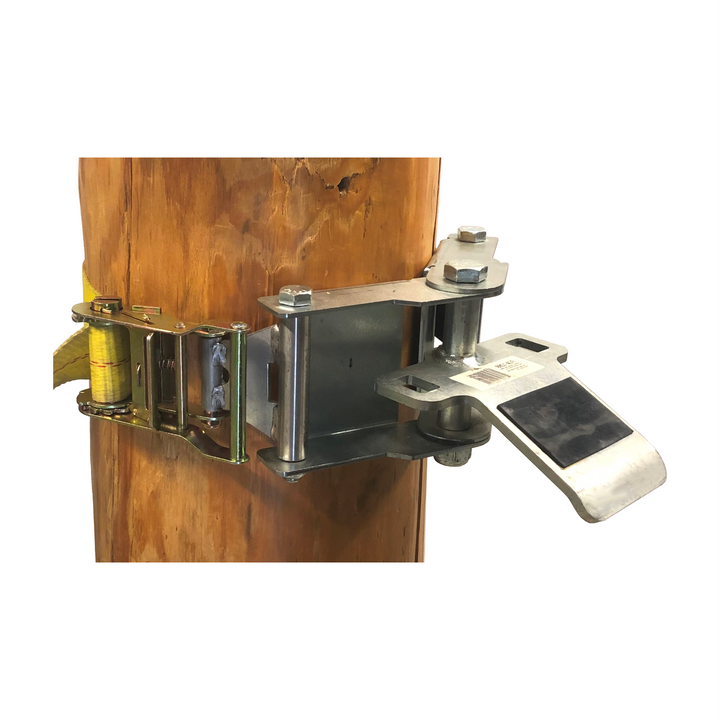

This anchoring device is easy to install by firmly tightening the 10' long belt using the ratchet mechanism. The winch can then be positioned at a comfortable work position, by attaching its hooks into the square openings of the anchoring's swivel plate. This will also allow the winch to automatically align with the load!

For winches PCW3000-Li, PCW3000, PCW4000, PCW5000 and PCW5000-HS.

SPECIFICATIONS

Will fit trees or poles from 12'' to 36'' in diameter
Comes with a 2'' x 10' strap
Material : Zinc plated steel
Weight : 8 lb
Dimensions : 19'' x 7'' x 6''

VIDEO CONTENT

Since the video above is 13-minute long, we thought we would put the markers below to allow you to move directly to your product(s) of interest. You will be able to advance the video at the time of your choice.

PRODUCTS

STARTS AT

Anchoring systems for trees and poles

1 min 10 sec

   PCA-1260 - Polyester sling

1 min 15 sec

   PCA-1263 - Tree-mount winch anchoring system with rubber pads

1 min 37 sec

   PCA-1268 - Winch support plate

3 min 31 sec

   PCA-1264 (PCA-2264) - Vertical pull winch supports. Products modified since.

4 min 26 sec

   PCA-1269 - Tree-mount winch anchoring system

6 min 50 sec

Anchoring systems for vehicles

8 min

   PCA-1267/PCA-1501 - Hitch square tubing

8 min 13 sec

   PCA-1266 - Heck Pack anchoring system with adaptor for 50 mm tow ball

8 min 30 sec

   PCA-1268 - Winch support plate

8 min 45 sec

   PCA-1264 (PCA-2264) - Vertical pull winch supports. Products modified since.

9 min 35 sec

   PCA-1261 - Hitch plate for towing balls

11 min 34 sec



Customer Reviews

Based on 6 reviews
83%
(5)
17%
(1)
0%
(0)
0%
(0)
0%
(0)
C
Christopher Kernan

It is useful and I am glad that I bought it, but the winch flops around on what seems to me to be a platform that is too small and a bit off the winch's center of balance

Thank you Christopher for taking the time to share your comments. May we suggest you use a pulley to deviate the rope? It looks like the winch is taking all the bouncing from the load. This can easily be avoided by using a pulley somewhere in your setup; the pulley will then take most of the bouncing effect and the winch will be more stable. I hope this will help!

D
David Talbott
Get your ropes off the ground

The mount makes it easy to keep the wench off the ground. This also helps keep the ropes from getting small twigs and small branches caught and pulled onto the drum.

W
Walter Werfel
portable winch and tree mount anchor

I use the tree mount to pull logs out of the woods when I am hobby logging on my forest plot. The tree-mount anchoring system is a real game changer. I would unreservedly recommend it.

K
Kevin Clark
Tree mount winch anchor

I have owned my portable winch for years, and it has helped me out of jams and also assisted me in building several hunting blinds over the years. I wish i would have had the tree mount anchoring system back then it would have assisted in making things easier. In the past year it has assisted me with moving large gates up steep 70 and 80 degree inclines that i wasn't able to carry them up, it was also helpful in getting large pallet up and down inclines to build a fence. Although i don't use it everyday or month when i do use my winch it helps save my body from unneeded wear and tear.

N
Nathan Johnson
Tree Mount Anchor

It worked great, never had a problem with it.
