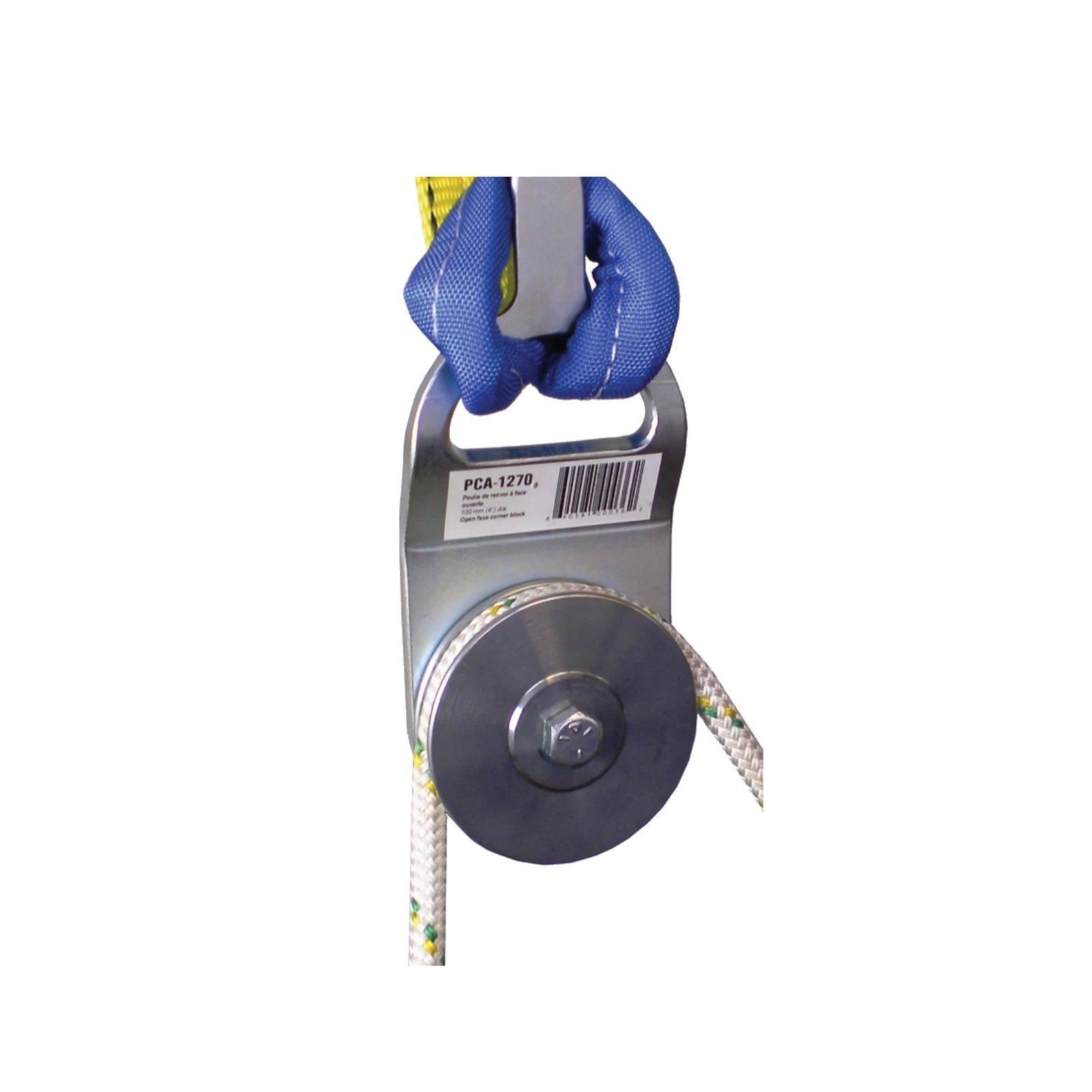

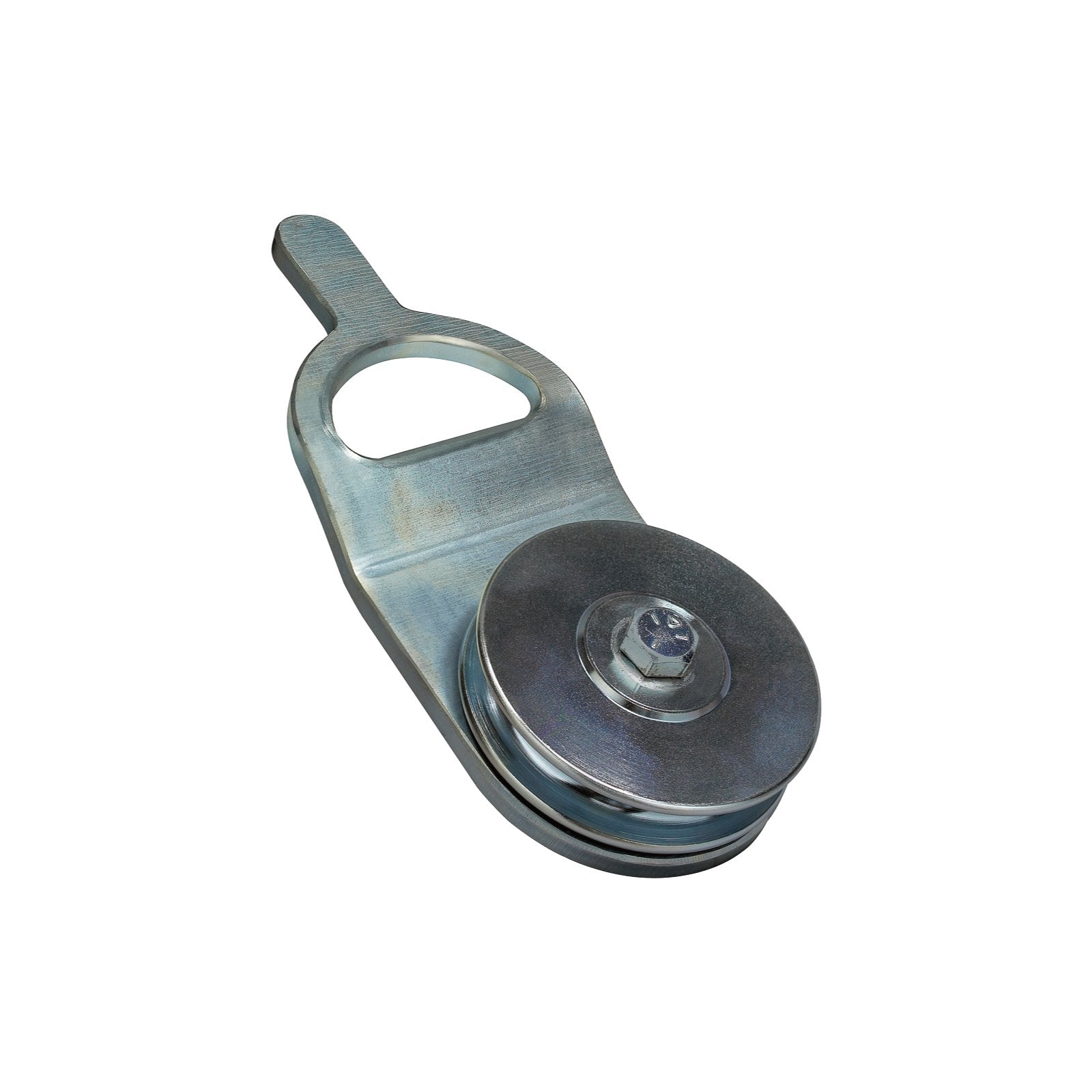

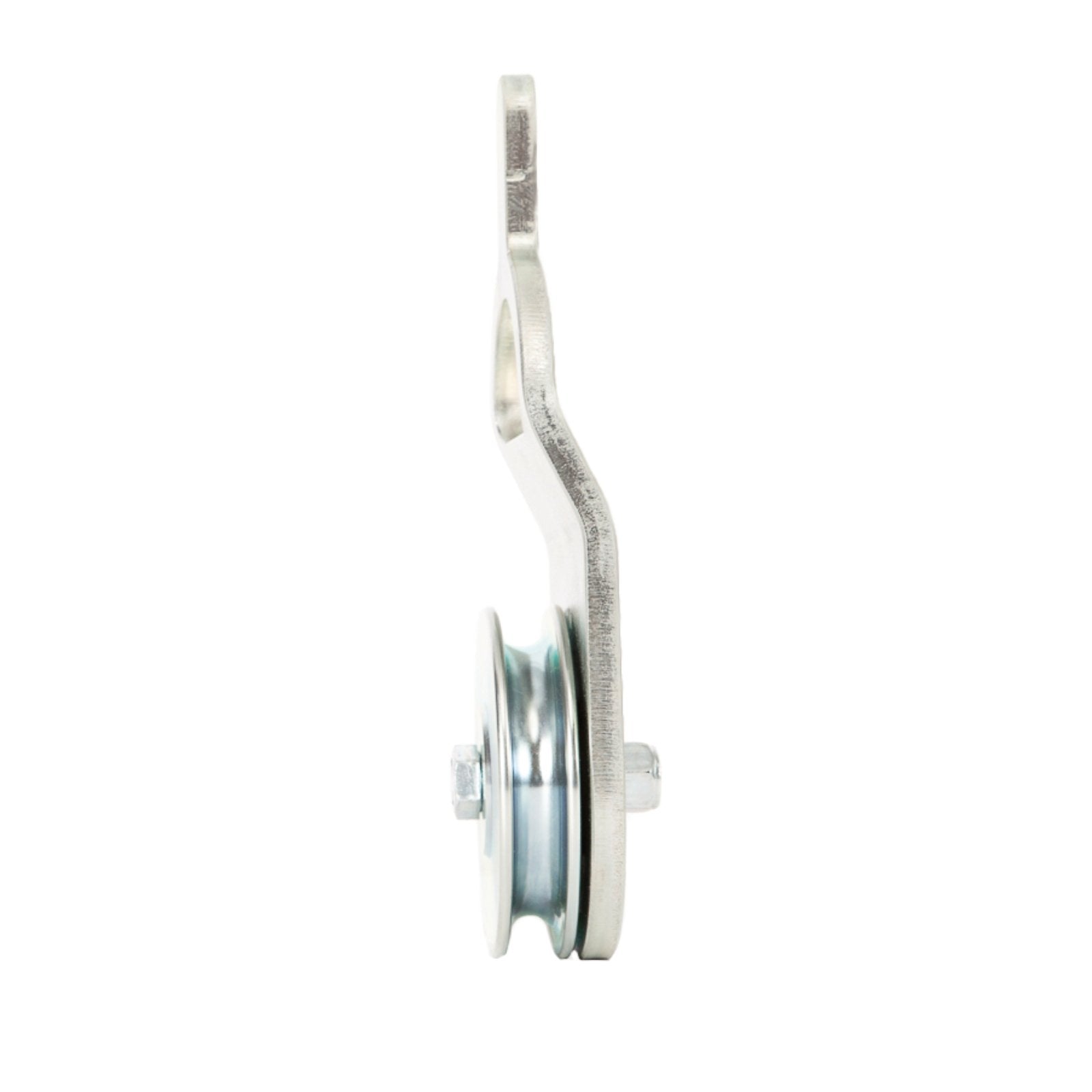

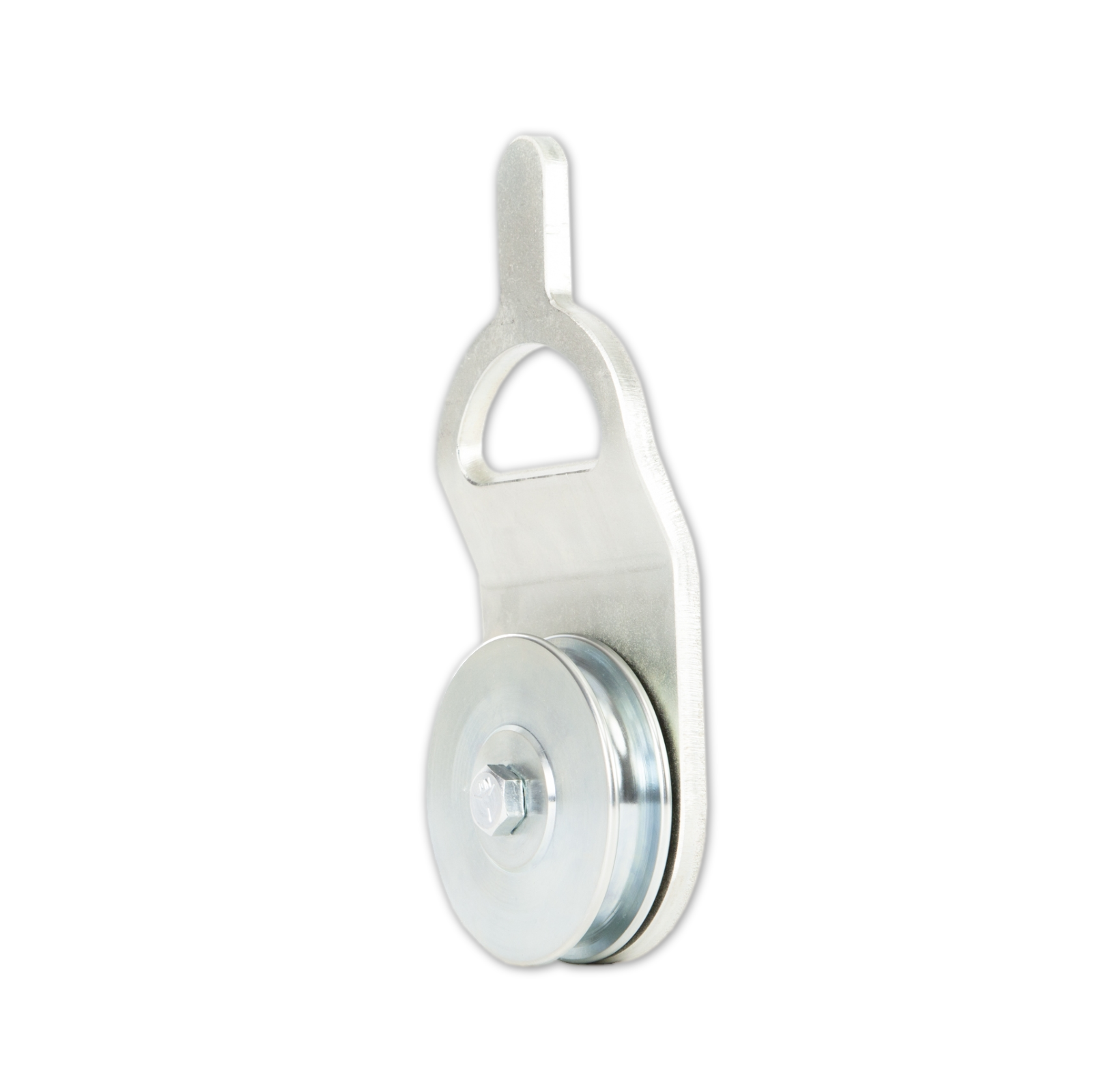

The open-face pulley is designed to pull trees perpendicular to a path when the traction comes from a vehicle. It is also useful for deviating trajectory and get around obstacles. In addition, when installed at height, it creates a pulling angle that allows the tip of the log to be slightly lifted and thus reduces friction on the ground.

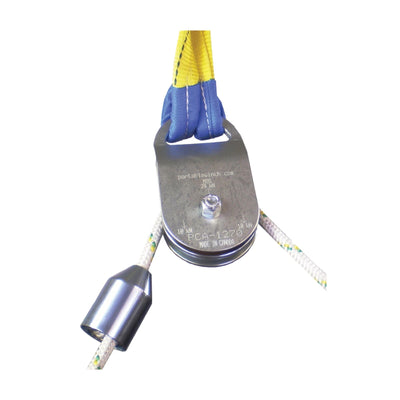

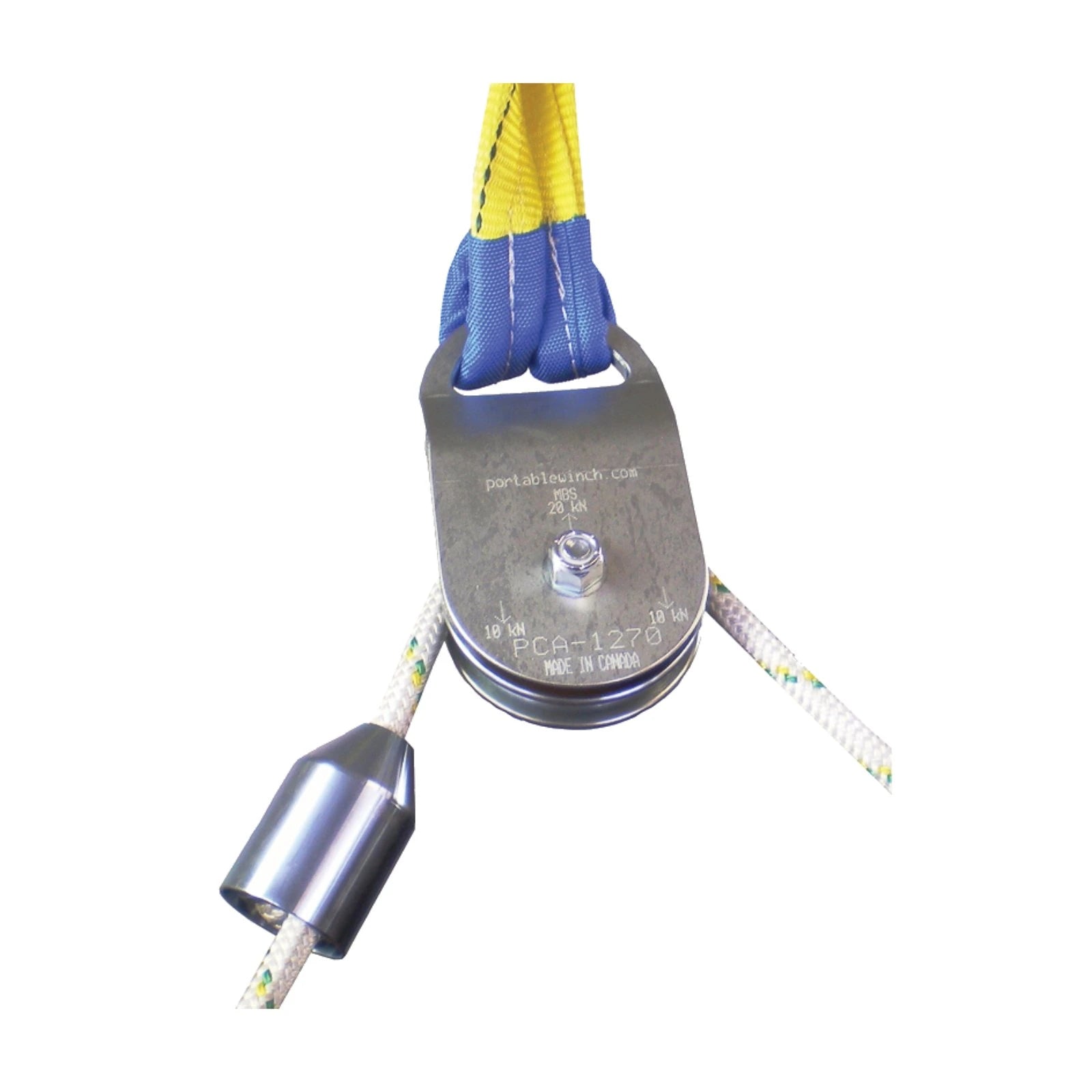

Made of steel, it is shock-resistant and is generally used paired with the automatic release (PCA-1291). The sheave is smooth and without sharp edges: it will not damage synthetic lines.

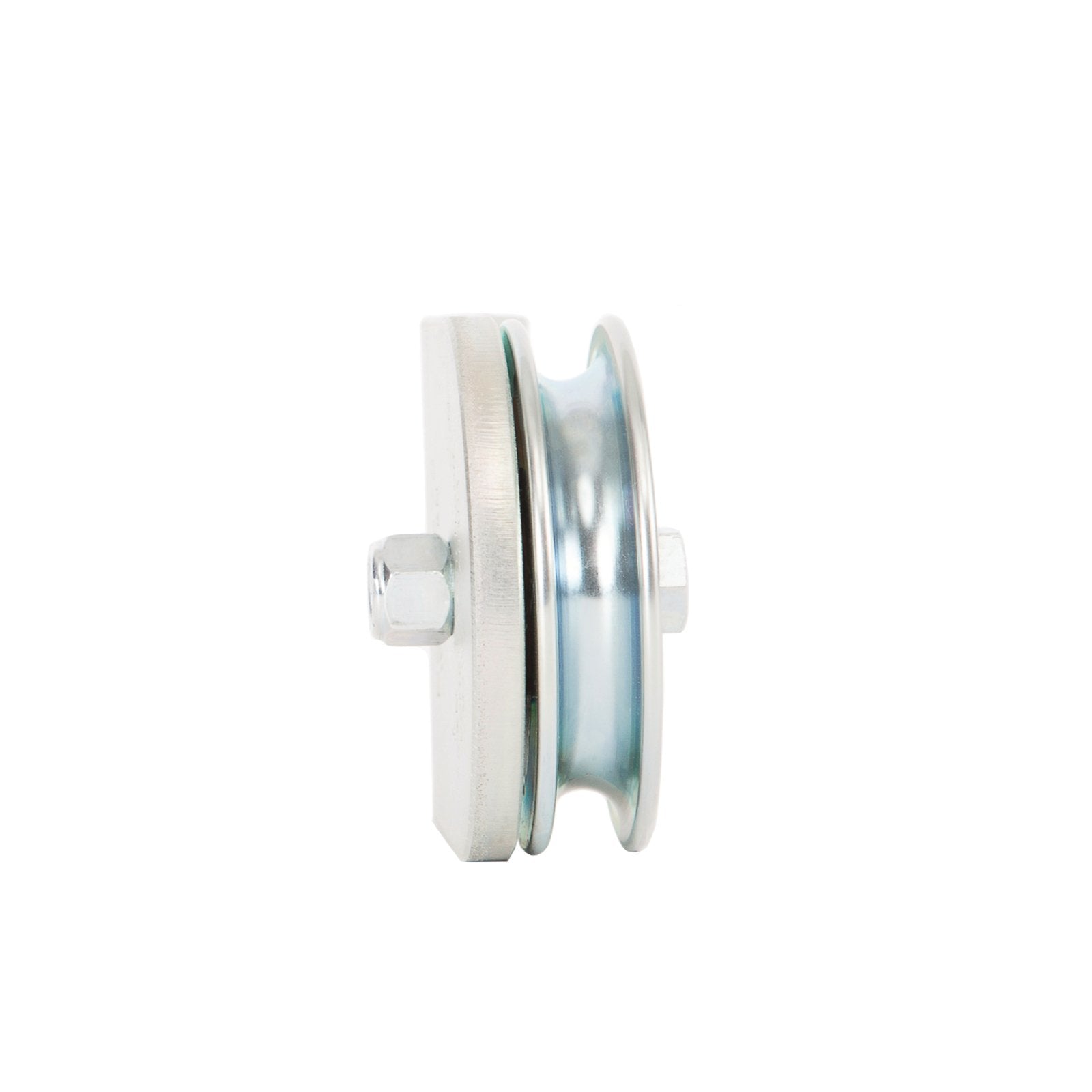

Its 4'' diameter provides excellent efficiency.
Attach it to a tree with one of our polyester slings.
This product is of great interest for you, check-out our (PCA-1290-K) which includes this pulley, the automatic release and more!
(working load limit)
|ROPE Ø||SHEAVE Ø||MATERIAL||WEIGHT|
|PCA-1270||20 kN (4495 lb)||1/4'' to 1/2''||4''||Steel||5 lb|
Great product - makes it possible to easily skid logs around obstacles without having to relocate or re-attach.
