Regular price$2,169.95 USD
/
Shipping calculated at checkout.
Features the GXH50 engine by Honda, a commercial grade engine that will never let you down. This winch is inexhaustible and will be your ally to do whatever job you have to do.
Product
FIND YOUR DEALER

Warranty: 5 years

Learn more


The original.

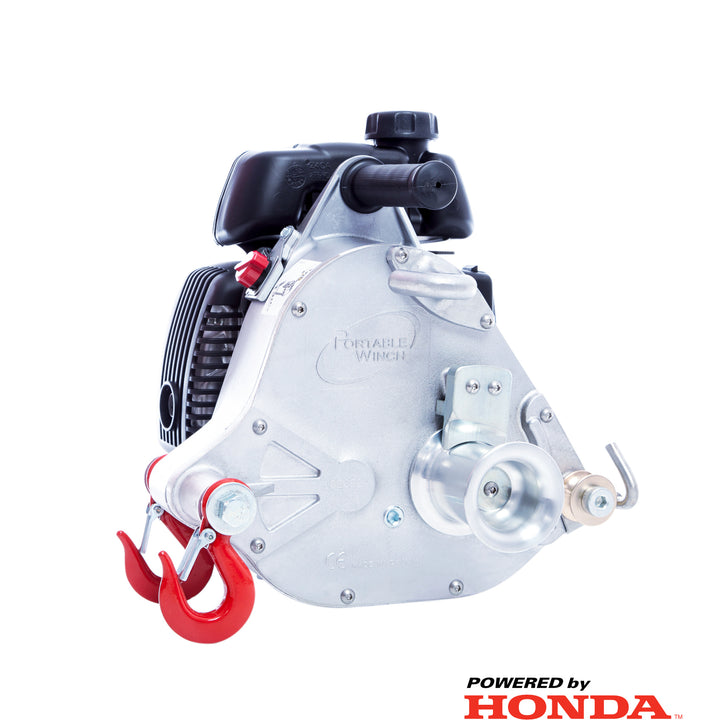

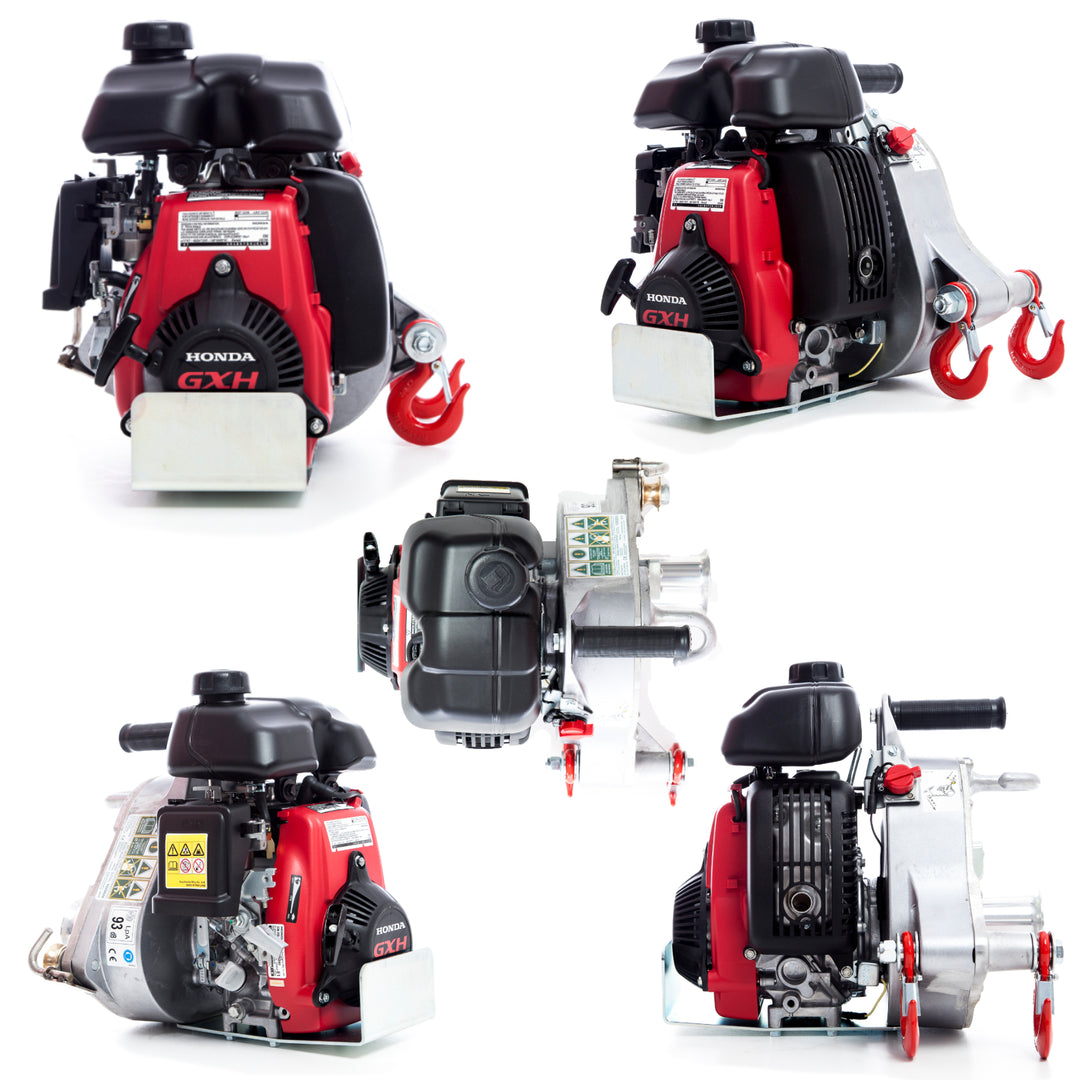

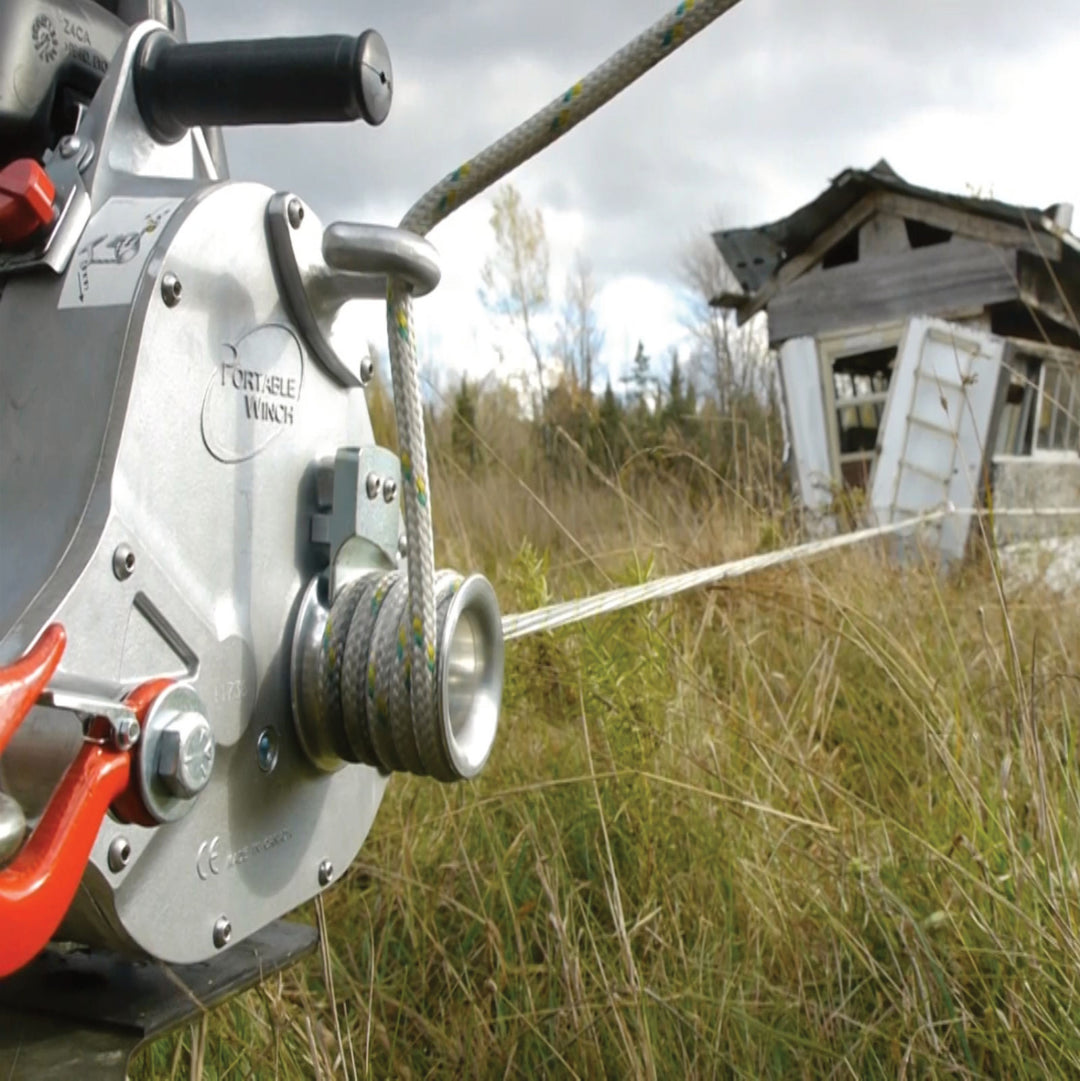

The sturdy design of the PCW5000 still proudly bears the Portable Winch signature quality and durability; an ingenious product, to deliver lasting power, without compromise. Thanks to its industrial-grade GXH50 4-stroke engine (49-state compliant*), this winch delivers all its power for several hundred hours with a constant pulling speed of 12 m (40 ft) per minute. The capstan winch concept allows to pull loads without loss of power, in a simple, effective, and safe way.
For more speed, a larger drum of 85 mm (3 ⅜ in) is available as an option to reach a 50% faster pulling speed of 18 m (60 ft) per minute.

The PCW5000 develops a remarkable pulling force of 1,000 kg (2,200 lb) over an unlimited length of rope. Use a block and tackle to get up to five times (5x) the pulling force. This means, with two double pulleys, you could pull up to 5,000 kg (11,000 lb)!

  • Unleaded gasoline, 86 octane or higher
  • Direct drive (no clutch)
  • Standard drum size: 57 mm (2-1/4 in)
  • Optional drum size: 85 mm (3-3/8 in)

*California Assembly Bill 1346 - 2024 small gas-powered equipment is banned

Click on the "Downloads" tab to get the detailed product specifications, user manual and more.

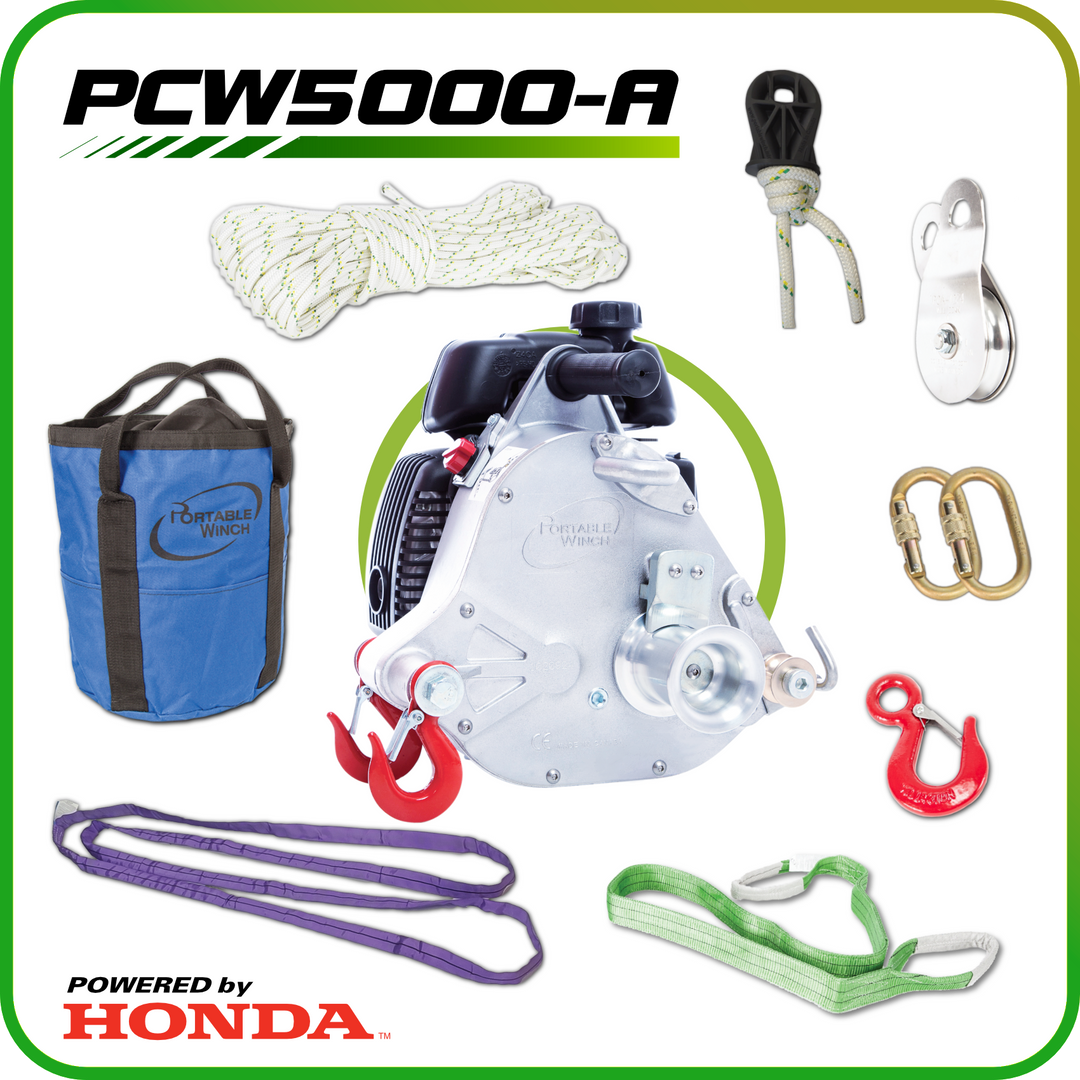

  1. PCW5000
  2. Rope bag to store and carry your rope
  3. 50 m (164 ft) rope for smooth pulling operations
  4. RopeWizerTM - The Easy Splice to retain nearly 100% of the capacity of your rope and easily attach the carabiner
  5. Single pulley to either deviate the pull angle or double the power of the winch
  6. Steel locking carabiners 2x; one to link the pulley to the sling and one for the end of your rope
  7. Safety Hook with Latch to place at the end of the rope to easily attach to the load
  8. 2 m (6 ½ ft) Polyester sling to attach the pulley to a tree for example
  9. 2.5 m (8 ¼ ft) round polyester sling to anchor the winch wherever you need it!

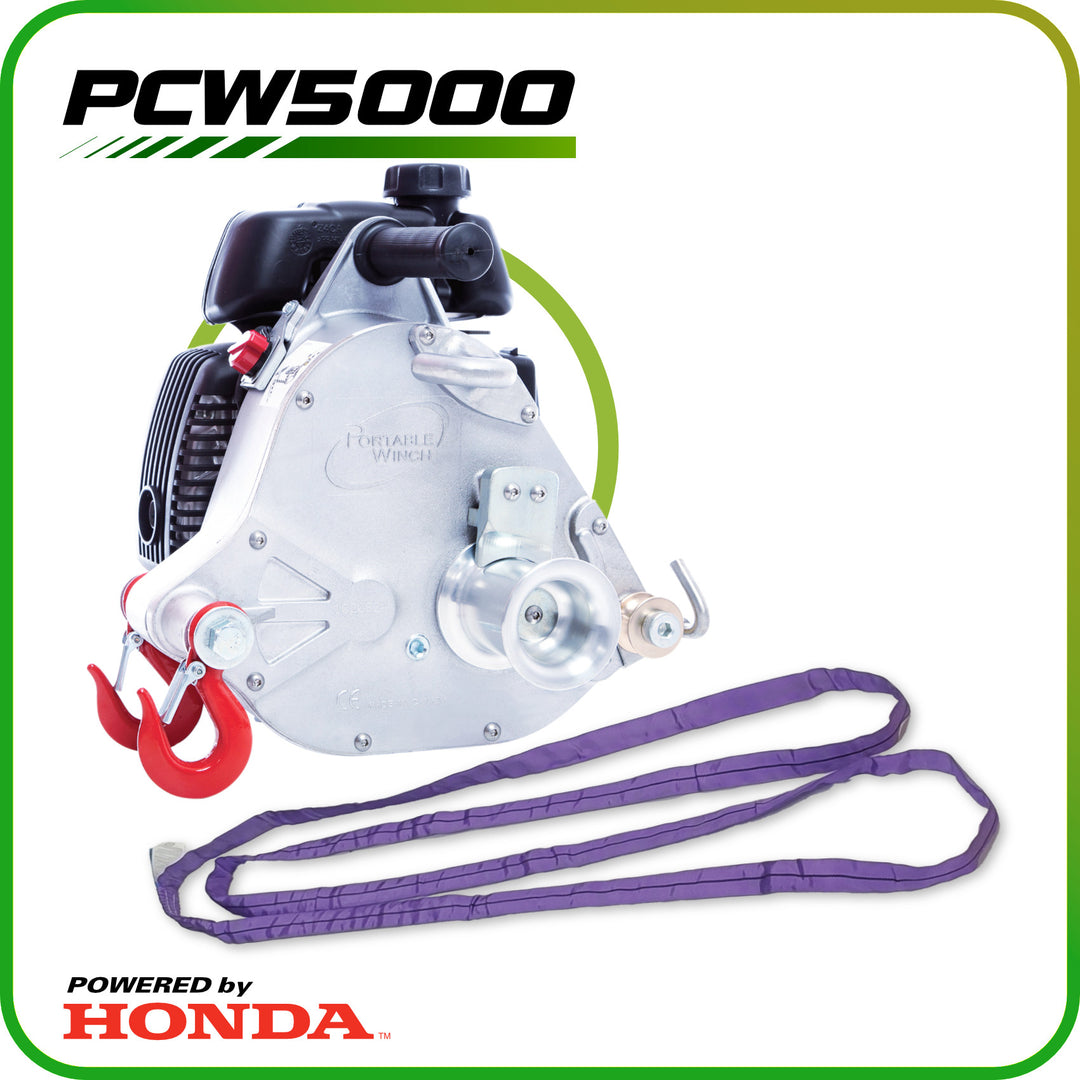

  1. PCW5000
  2. 2.5 m (8 ¼ ft) round polyester sling to anchor the winch wherever you need it!

Customer Reviews

Based on 36 reviews
97%
(35)
0%
(0)
0%
(0)
0%
(0)
3%
(1)
C
Customer
PCW5000 and Accessories - Excellent!!!

I used this product and almost all the accessories that comes with it to clean up a land with various challenges, steep hill, mud, water, huge roots, etc. Each time it delivered as expected. It is so powerful. I got big trees out of the water by using pulleys to create the mechanical advantage and get 4x the pulling force. Everything is high quality and really well designed to do the job. Thanks to the Portable Winch Team.
PS: This tool is not a toy. Follow the instructions and guidelines and you will be successful. One day, I anchored the winch to a tree that was not strong enough and it started to fall while I was operating the winch. That was totally unexpected. I was not hurt, but what a surprise!

C
Customer
PCW5000 and Accessories - Excellent!!!

I used this product and almost all the accessories that comes with it to clean up a land with various challenges, steep hill, mud, water, huge roots, etc. Each time it delivered as expected. It is so powerful. I got big trees out of the water by using pulleys to create the mechanical advantage and get 4x the pulling force. Everything is high quality and really well designed to do the job. Thanks to the Portable Winch Team.
PS: This tool is not a toy. Follow the instructions and guidelines and you will be successful. One day, I anchored the winch to a tree that was not strong enough and it started to fall while I was operating the winch. That was totally unexpected. I was not hurt, but what a surprise!

J
John Millan
Prompt

Placed a big order with lots of parts. Delivered quickly and everything was arrived as ordered. Very impressed!!

J
Jerome Baiton
PWC 5000

Purchased a PWC5000 in the summer of 2023. Used it for cutting firewood. Didn’t seem to have the pulling power that some were demonstrating online. Pulled the carb apart and found some minute pieces of brass in the main jet, mostly like left over from the production process. Hopefully when next summer rolls around the problem will have been solved.

A
Alain Maurice
PCW-5000

J’adore mon treuil PCW-5000. Maintenant je fait l’entaille et le trait des chicots et je me positionne à une distance sécuritaire pour les faire tomber à l’aide du PCW-5000. Excellent produit
