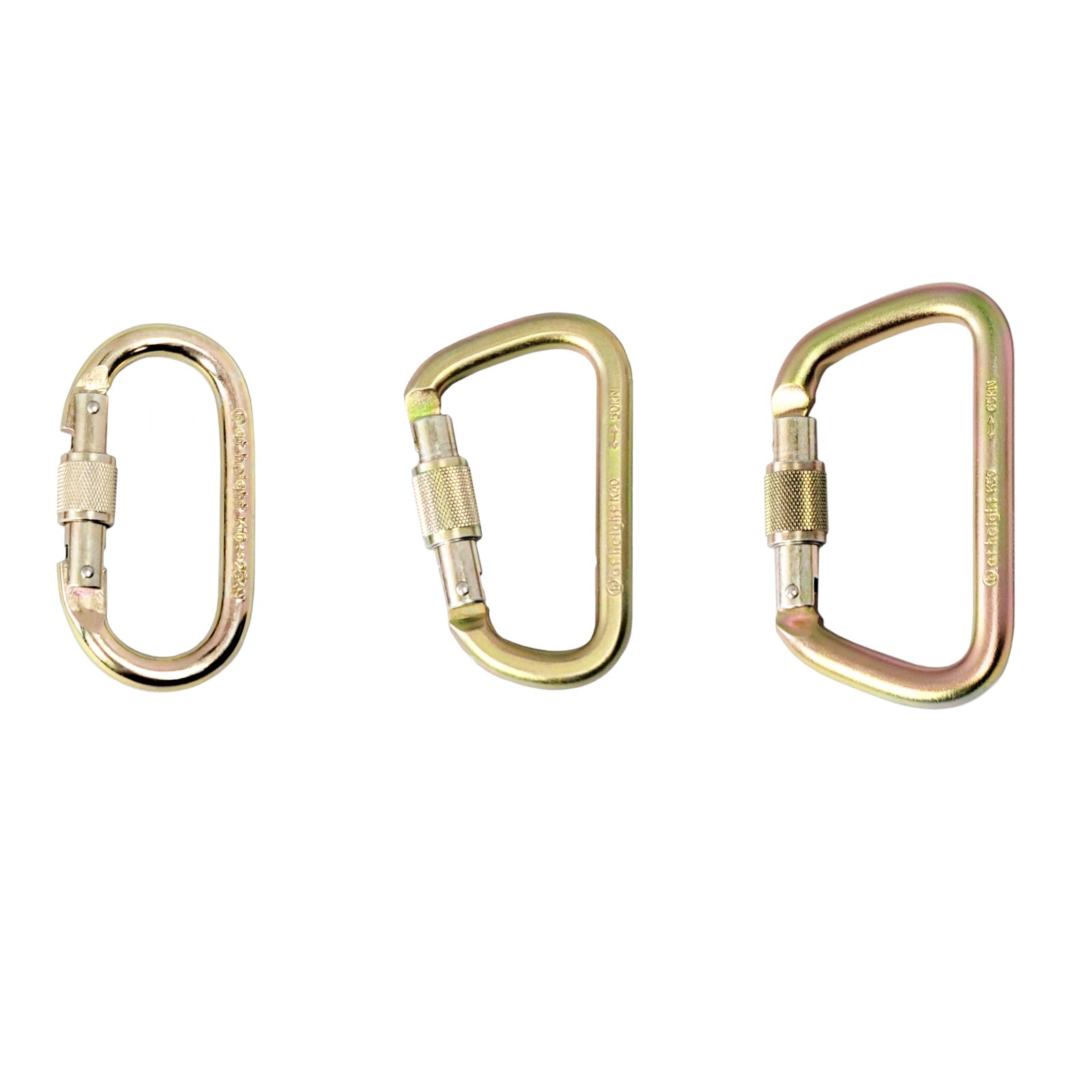

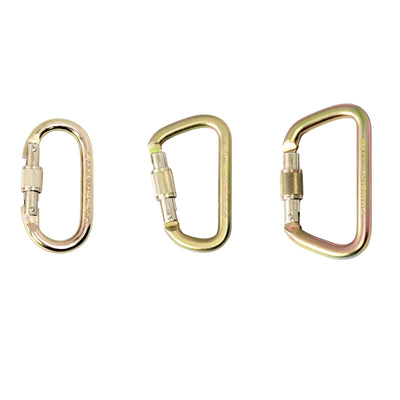

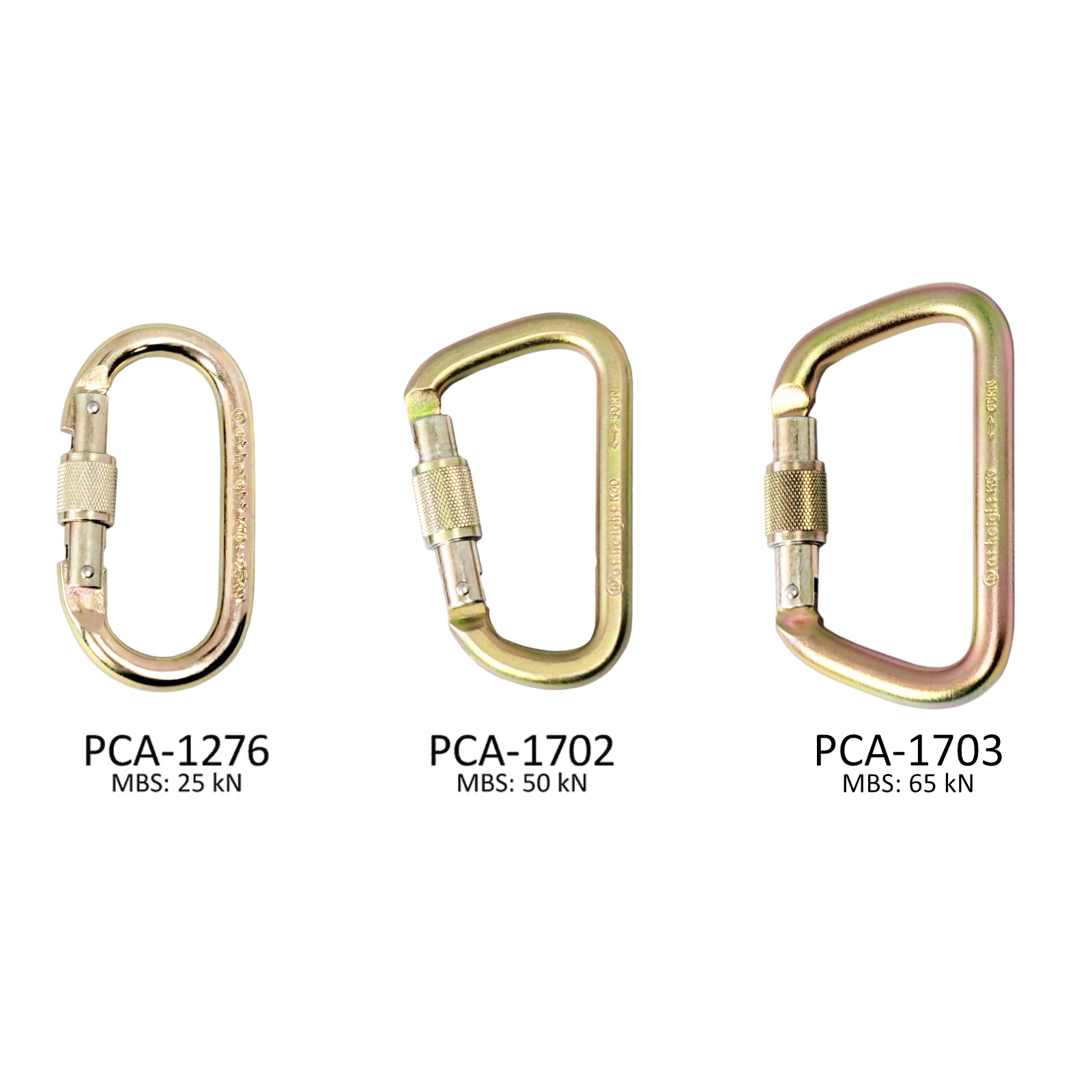

Multi-purpose carabiners with screw-gate lock. Useful for attaching:
- A pulley to a tree or to a load;
- A polyester sling to a vehicle or two slings together;
- A hook to a rope;
- All other applications according to your needs.

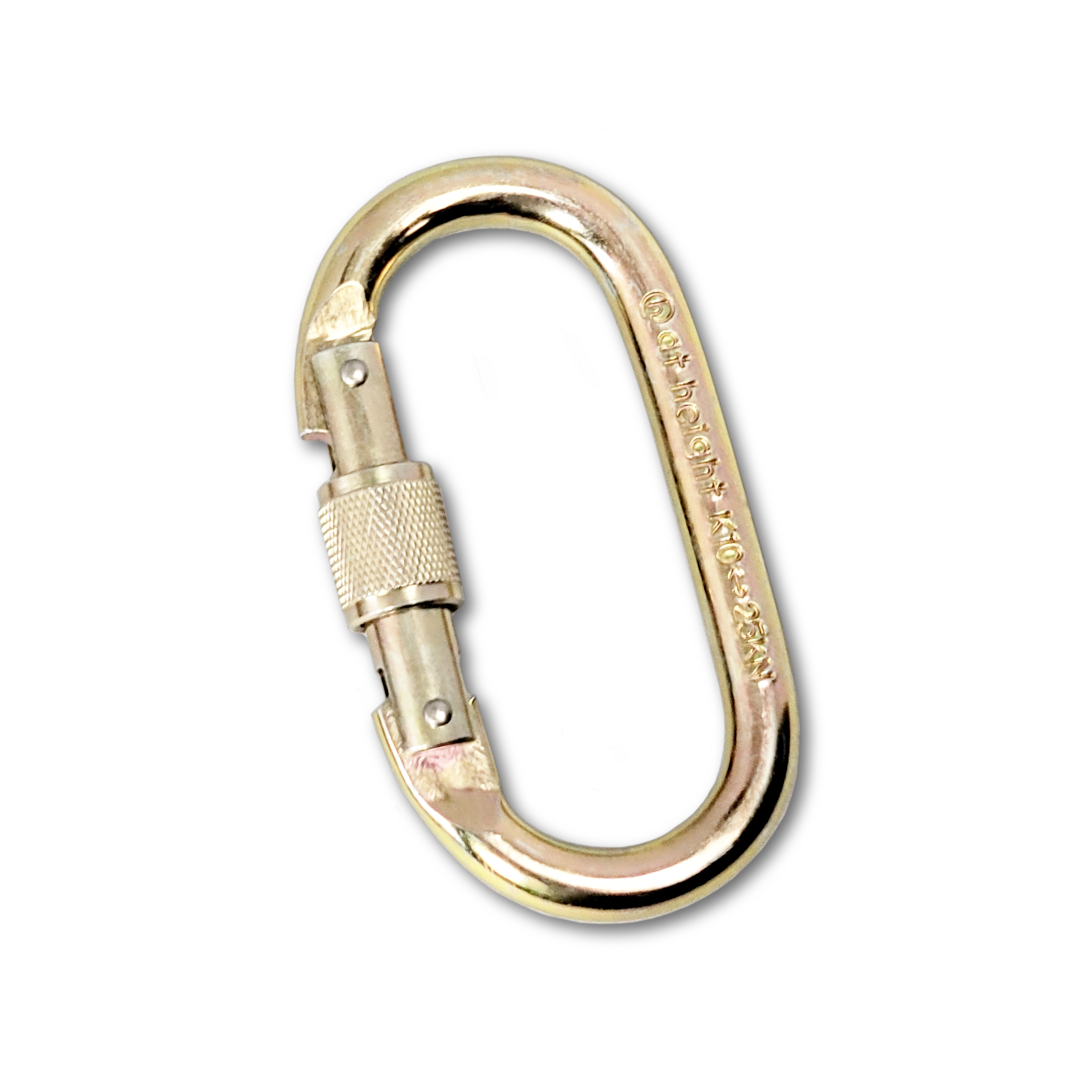

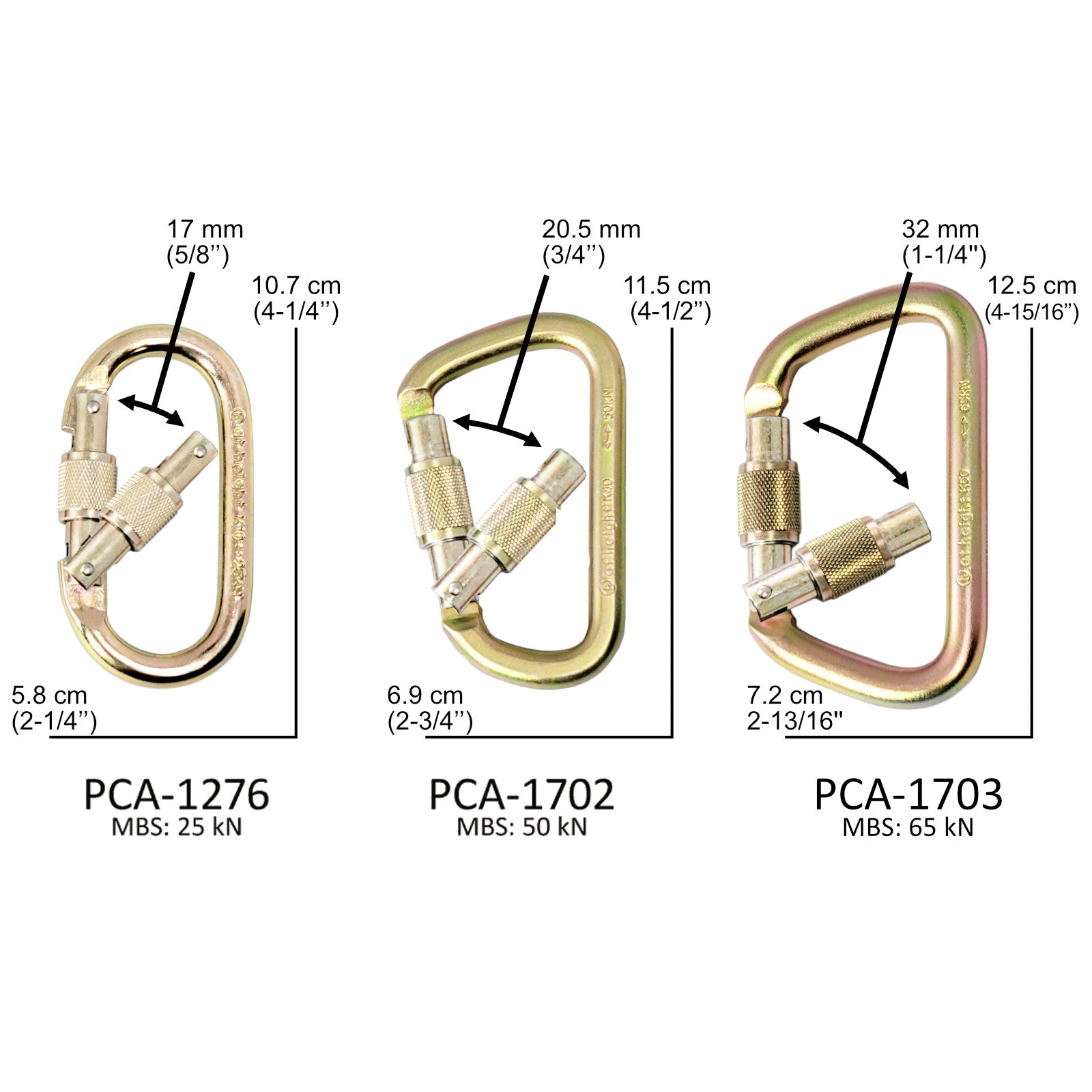

|PCA-1276||25 kN (5,620 lb)||3/8''||4-1/4''
||Zinc plated steel and high-quality anodized aluminium||CE|

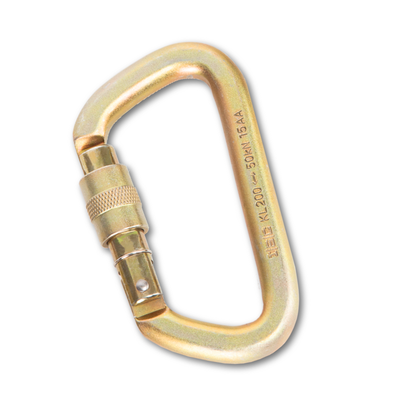

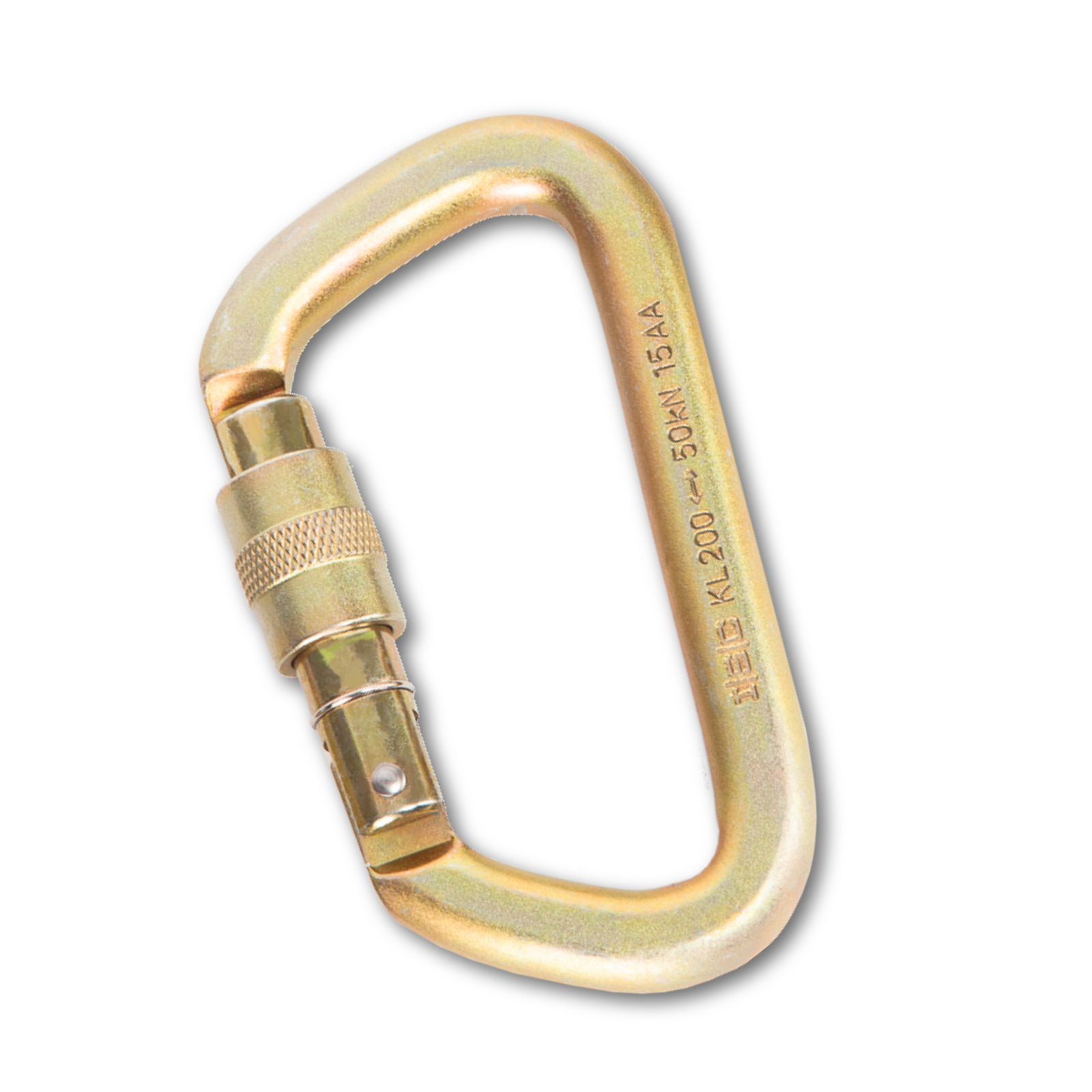

|PCA-1702||50 kN (11,240 lb)||1/2''||4-1/2''||2-3/4''||3/4''
|PCA-1701||70 kN (15,735)||1/2''||4-7/8''||2-7/8''||1-1/8''
Find the manual here.
Portable Winch carabiners have different minimum breaking strengths, which are observed during a destructive test. When the force exerted is multiplied through a block and tackle system, the carabiners located on each end are subject to significant forces. A sufficient safety factor must then be taken into account so that the equipment operates safely.

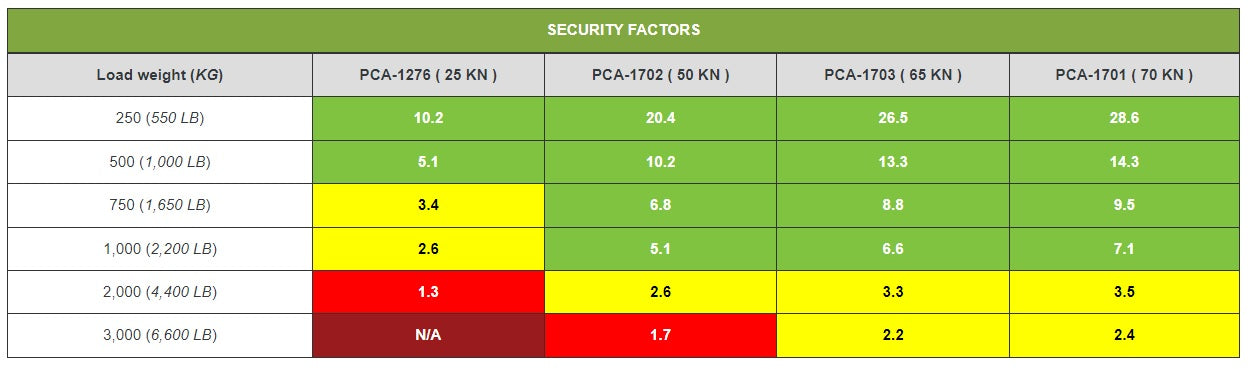

Refer to the table to find out the safety factor obtained with each of the carabiners based on the load to move.
