DESCRIPTION

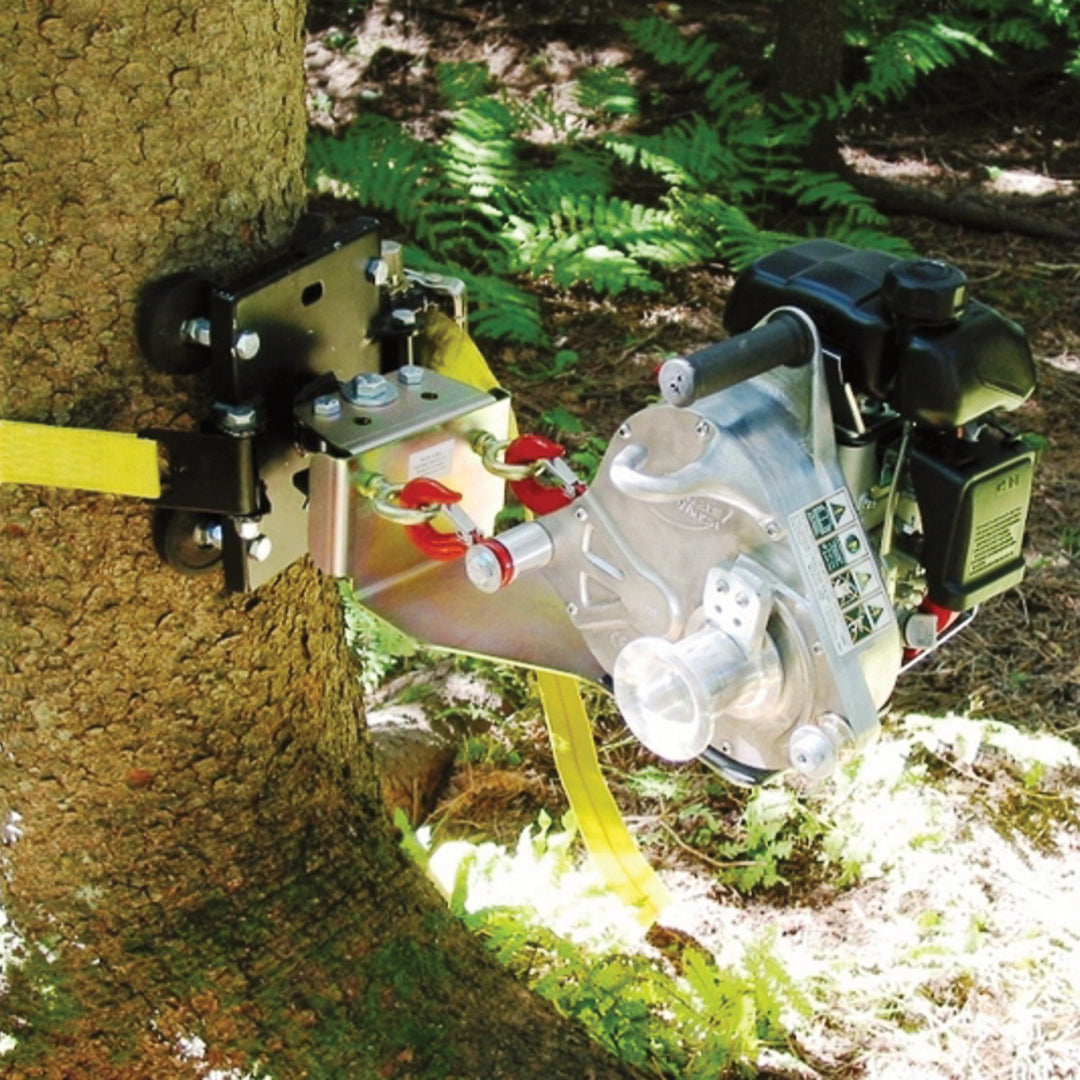

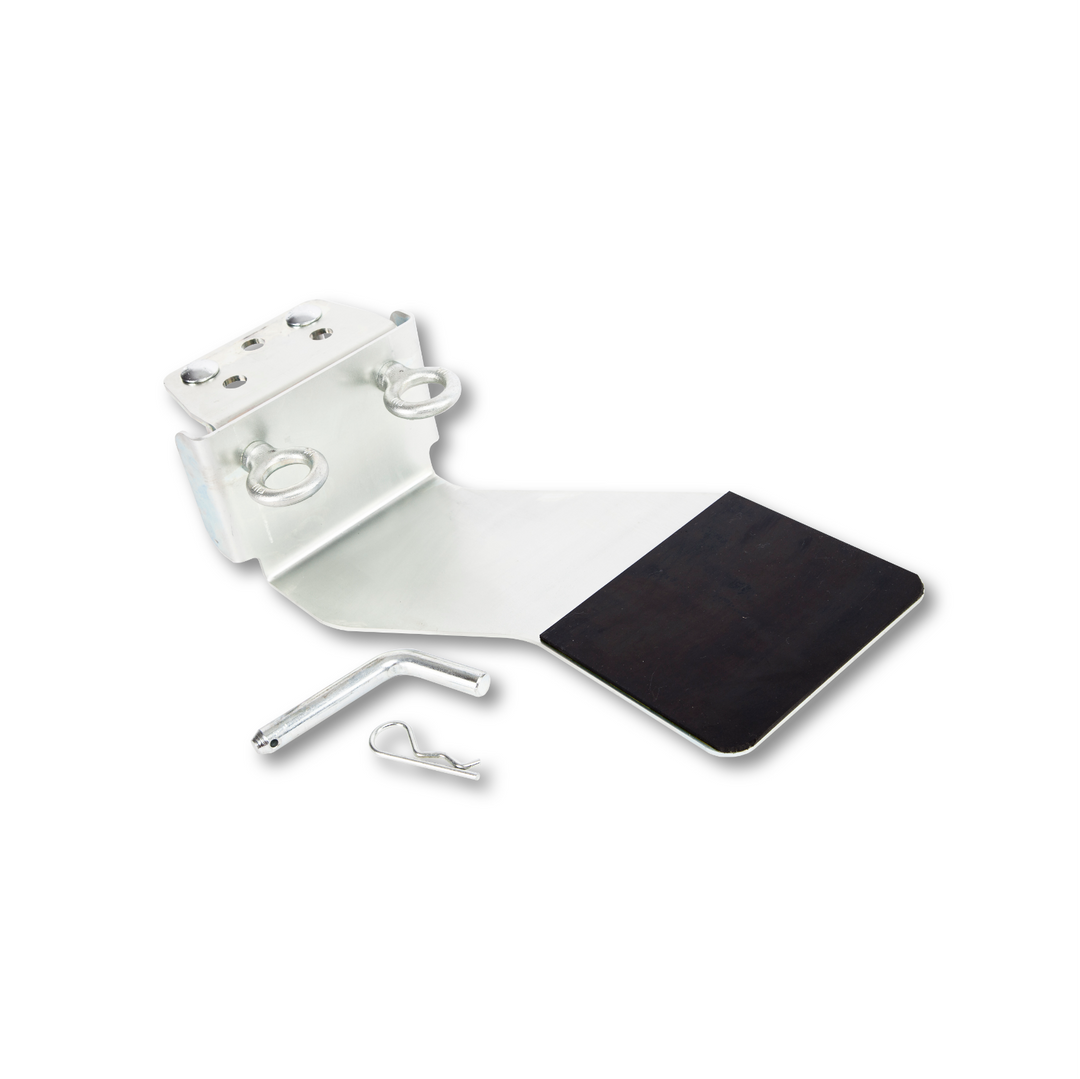

This winch support plate is ideal for anchoring a winch to a tree, pole, vehicle or pylon when paired with one of our anchoring systems. It keeps the winch stable and facilitates prolonged use from a fixed point. It swivels 45 degrees on each side and provides a solid support that automatically aligns with the load. Also features a rubber padding to absorb vibrations.
For winches PCW3000-Li, PCW3000, PCW4000, PCW5000 and PCW5000-HS. Can also be used with the PCH1000 or PCT1800 but the PCA-1264 support is better suited.

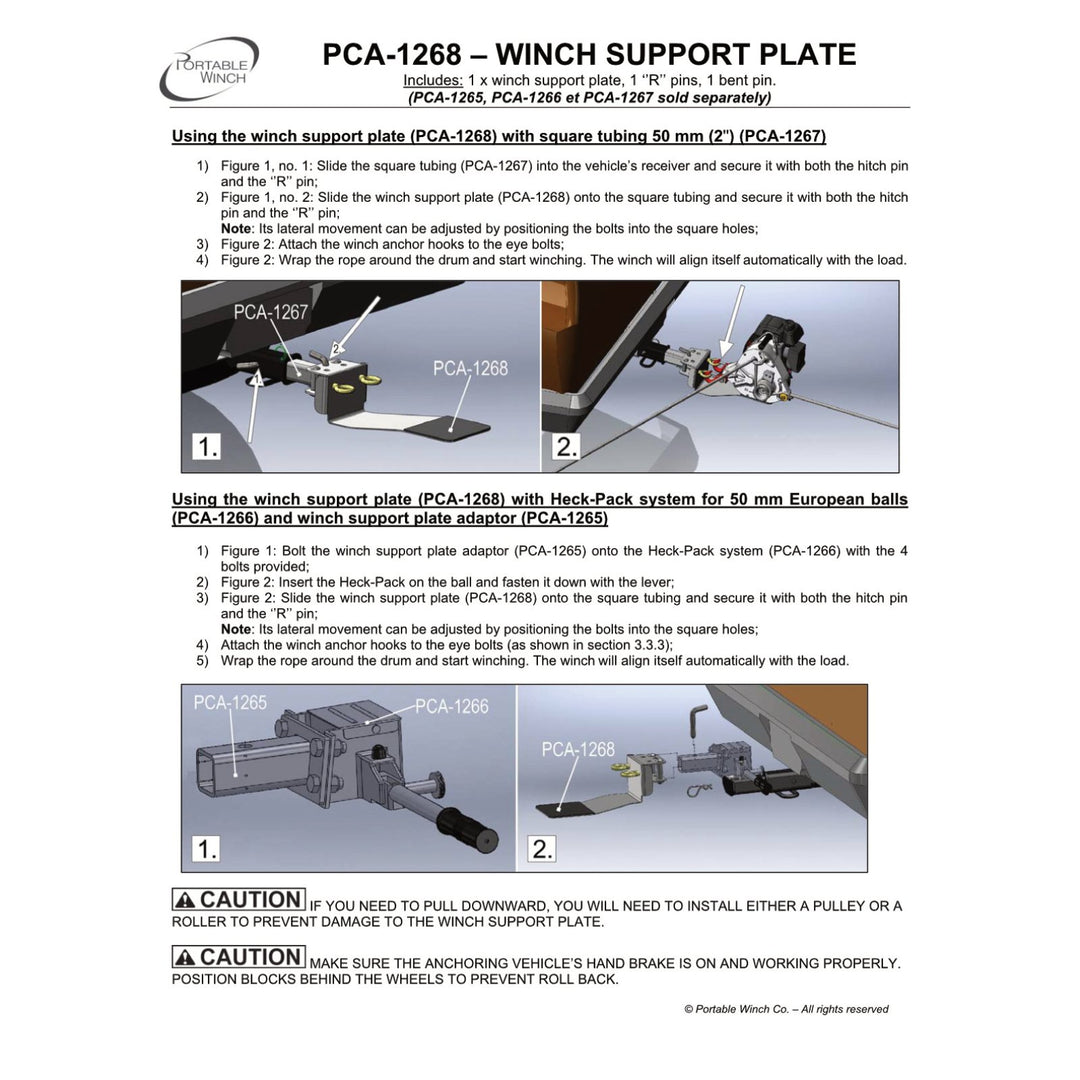

Find the manual here.
SPECIFICATIONS
Note: It can't be used alone; it must be combined with other accessories. Different combinations of accessories can be done with the PCA-1268 depending on the application and the environment (see figures above).

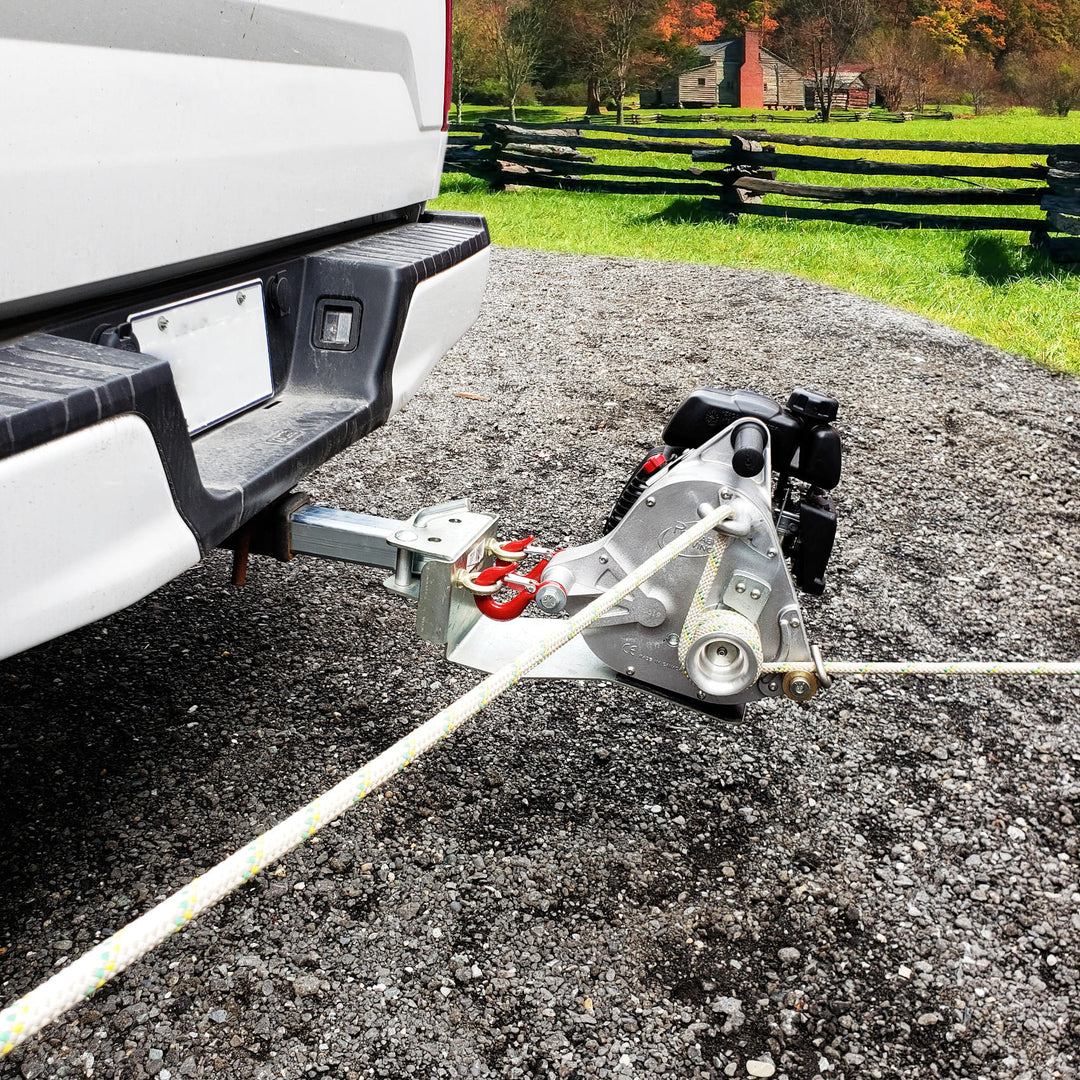

For instance, when paired with certain accessories, it will permit horizontal pulling. In such case, the winch will face the load and the rope will be in a direct line towards the winch.

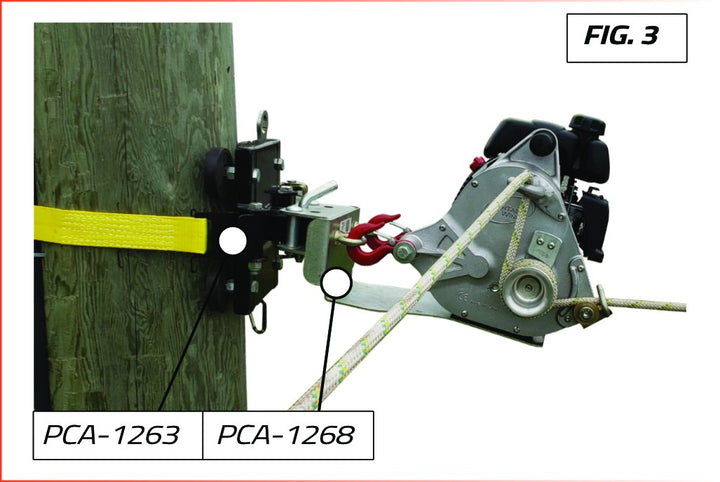

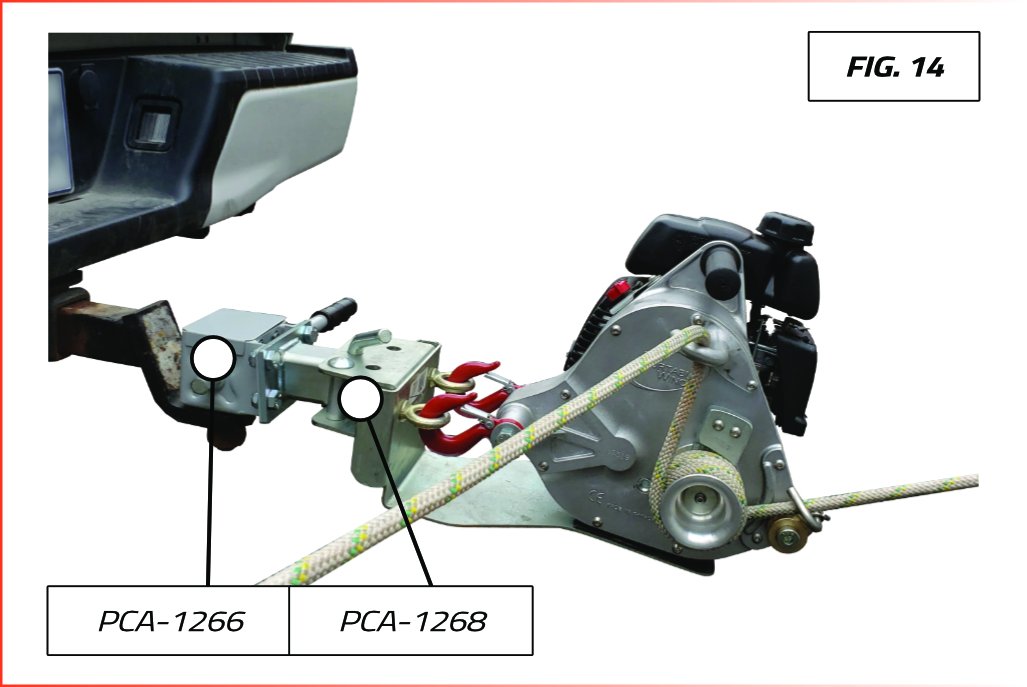

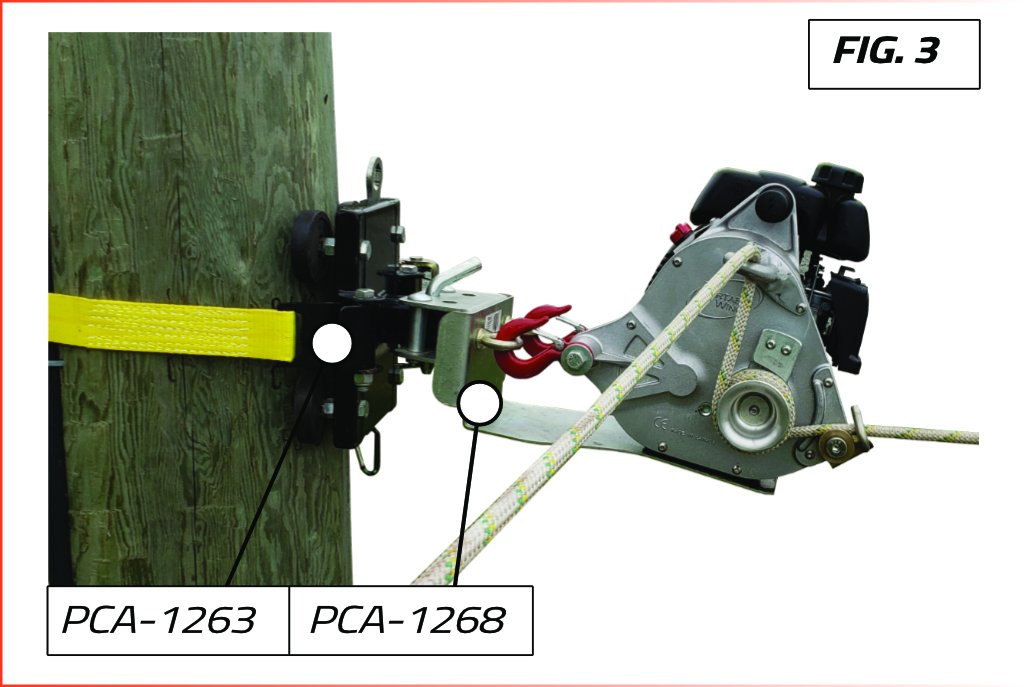

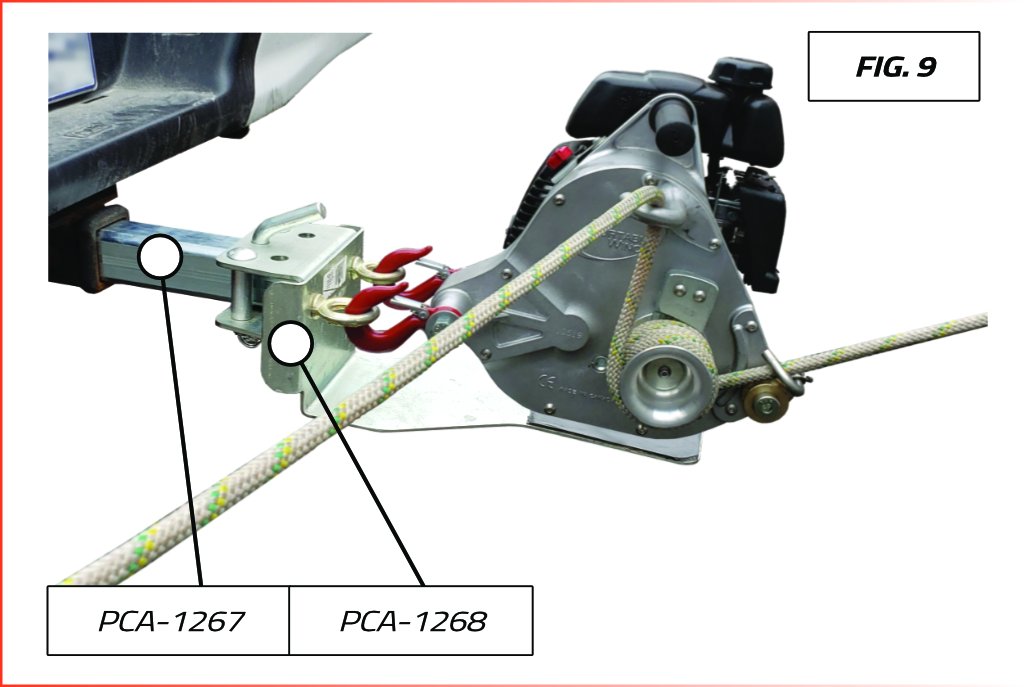

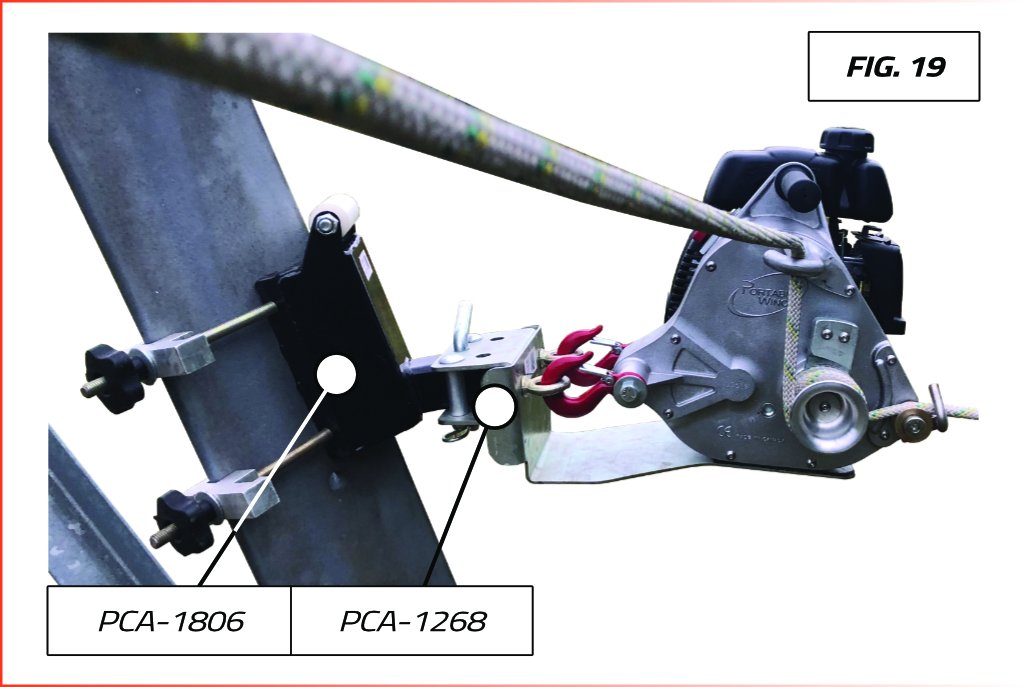

See Fig. 3, 9, 14, 19
Material: Zinc plated steel
Weight: 9 lb
Dimensions: 17'' x 11'' x 6''
|
VIDEO CONTENT Since the video above is 13-minute long, we thought we would put the markers below to allow you to move directly to your product(s) of interest. You will be able to advance the video at the time of your choice. |
|
|
PRODUCTS |
STARTS AT |
|
Anchoring systems for trees and poles |
1 min 10 sec |
|
PCA-1260 - Polyester sling |
1 min 15 sec |
|
PCA-1263 - Tree-mount winch anchoring system with rubber pads |
1 min 37 sec |
|
PCA-1268 - Winch support plate |
3 min 31 sec |
|
PCA-1264 (PCA-2264) - Vertical pull winch supports. Products modified since. |
4 min 26 sec |
|
PCA-1269 - Tree-mount winch anchoring system |
6 min 50 sec |
|
Anchoring systems for vehicles |
8 min |
|
PCA-1267/PCA-1501 - Hitch square tubing |
8 min 13 sec |
|
PCA-1266 - Heck Pack anchoring system with adaptor for 50 mm tow ball |
8 min 30 sec |
|
PCA-1268 - Winch support plate |
8 min 45 sec |
|
PCA-1264 (PCA-2264) - Vertical pull winch supports. Products modified since. |
9 min 35 sec |
|
PCA-1261 - Hitch plate for towing balls |
11 min 34 sec |
