Regular price $240.00 USD Sale price$228.00 USD
/
Shipping calculated at checkout.

Size

Here are our two models of self-locking pulleys available for users looking for holding a load in position. They are popular for industrial applications such as lifting operations as well as being very useful in forestry or hunting.

These ISC brand specialized pulleys are made of aluminium and are therefore lighter, although their main feature is their cam brake system that allows the rope to pass freely in one direction and is blocked in the other. The cam is spring-loaded and can be disengaged by pulling a cord. It can also be locked in open position by using the pin provided. The pulley can then be used as a standard one, allowing the rope to go freely in both directions.

Made with aluminium swing side plates and sheaves, they are mounted on a stainless steel shaft and a self-lubricating bearing which will ensure a flawless operation, all without maintenance.

Learn more about our pulleys on our Pulleys Play List on YouTube.

Learn more about our pulleys on our Pulleys Play List on YouTube.

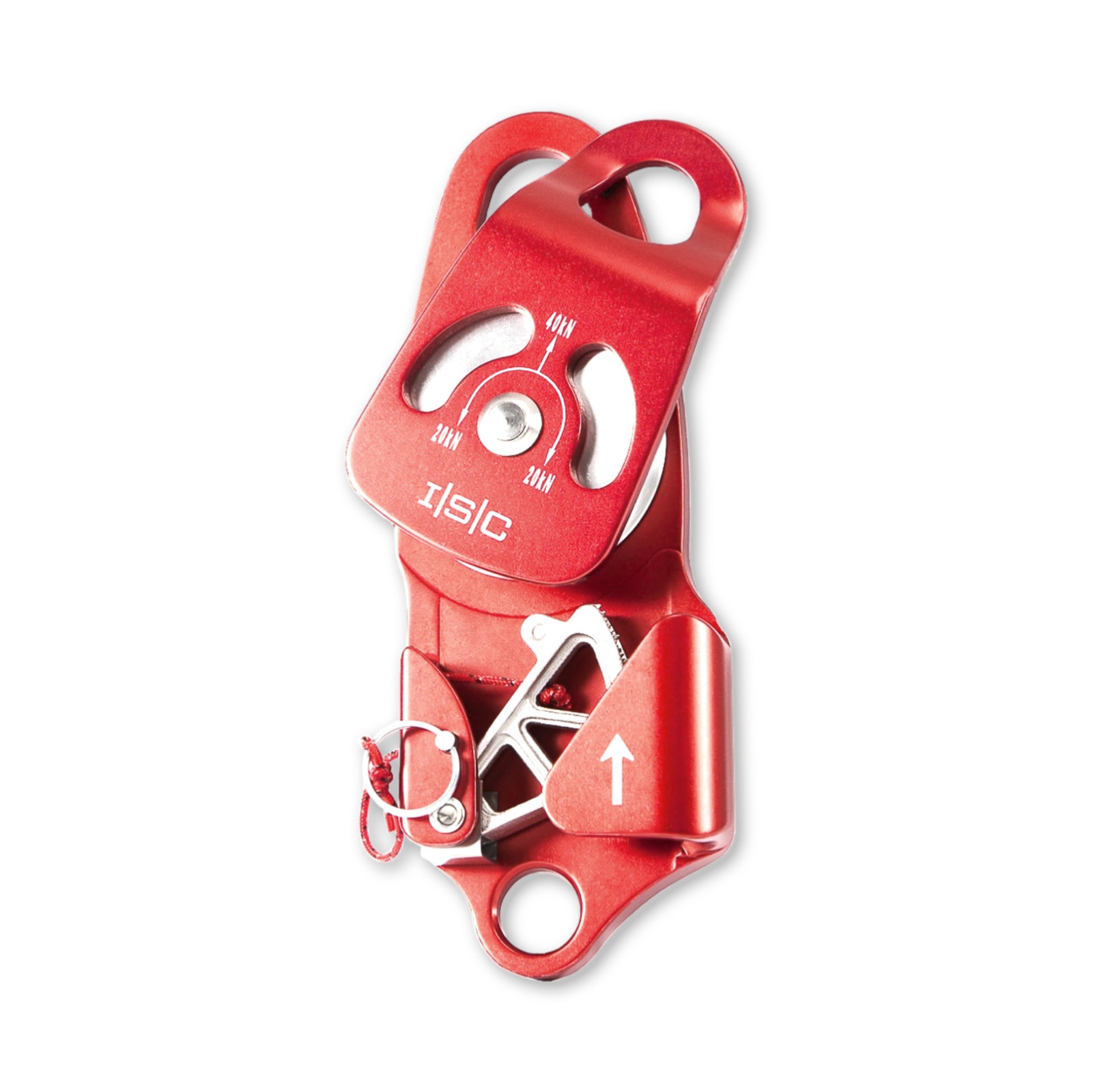

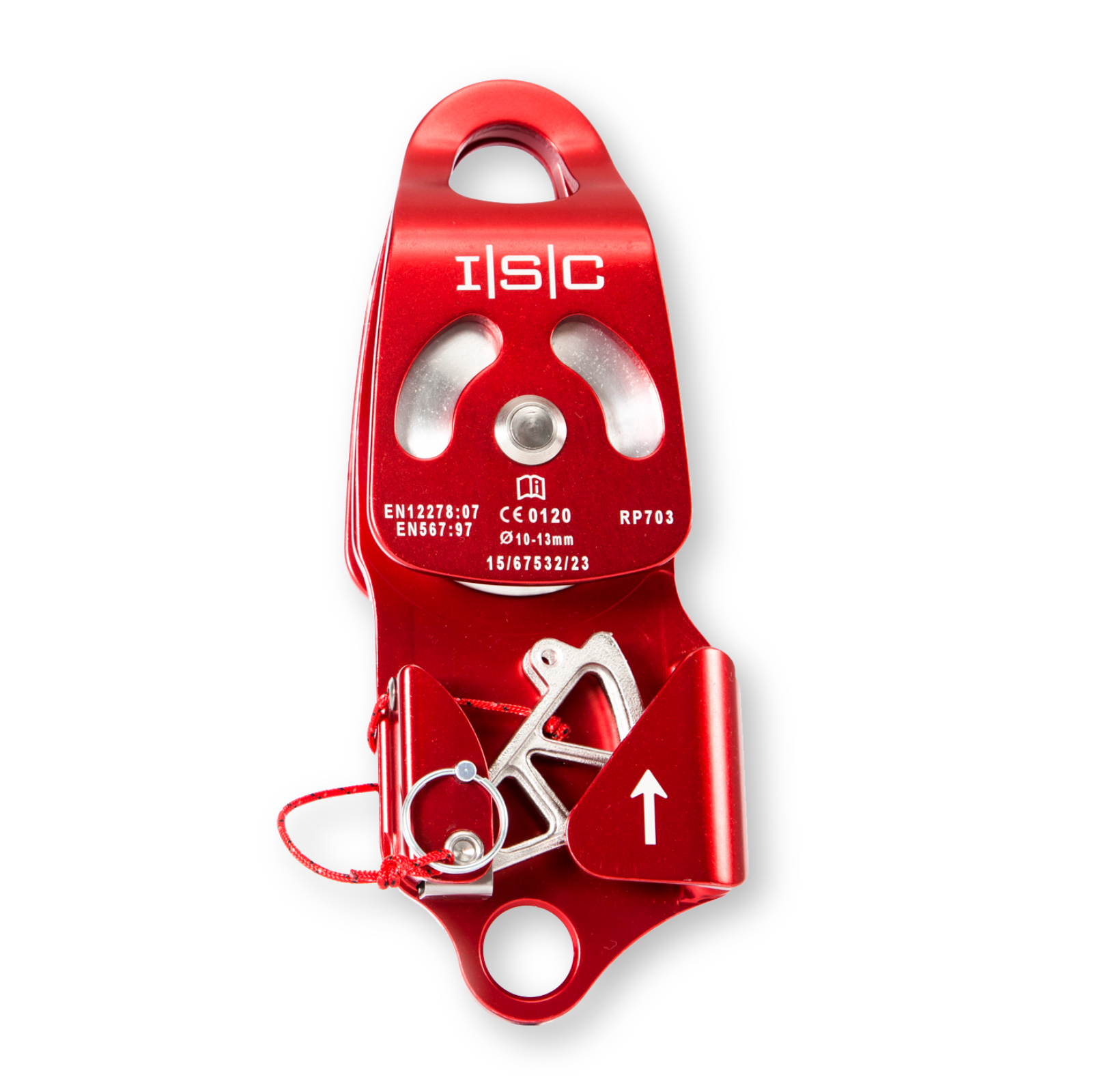

PCA-1271* PCA-1272*
1.5 lbs 2 lbs
Single pulley Double pulley
Ø rope up to 1/2 inch
All aluminium
Ø sheave 2 -1/2 inch
MBS 40 kN (8,993 lbs)
*CE certified
Mechanical advantage
